Product Overview

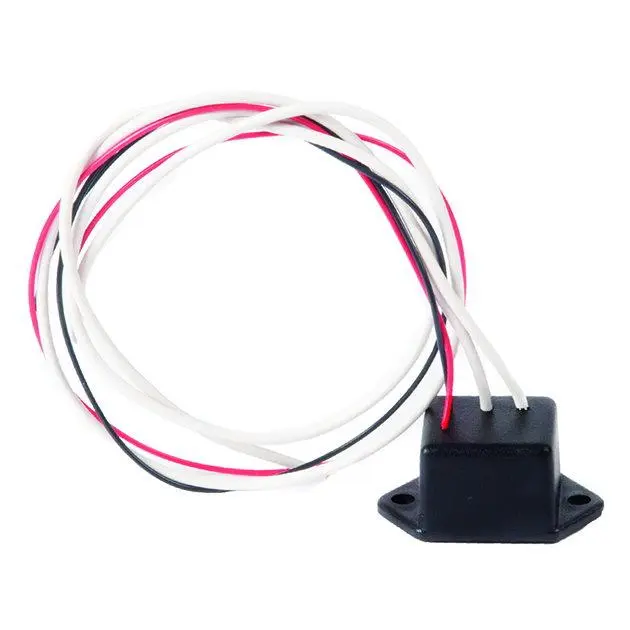

The DIG RIK-018 is a single-coil DC latching relay interface for compatible DIG irrigation controllers. It allows a supported controller output to switch compatible pumps, injectors, fountains, lights, or other electrical equipment through the relay contacts.
Key Features:
- Single-coil latching relay function
- Rated 3 VDC input
- Compatible with referenced 720A, 740A, and 760A controllers
- 18 in. input and output leads
- 10A contact rating at the listed AC or DC voltage
- RoHS-compliant component
Common Uses:
- Starting a compatible pump relay circuit
- Controlling a fertilizer injector
- Switching compatible fountains, lighting, or auxiliary equipment
Technical Specifications:
- Relay Function: Single-coil latching
- Rated Input: 3 VDC
- Input Current: 67 mA
- Coil Resistance: 45 ohms
- Minimum Set/Reset Signal: 20 ms at 23°C
- Contact Rating: 10A at 250 VAC or 10A at 30 VDC
- Maximum Carrying Current: 10A
- Weight: 1.76 oz / 50 g
Dimensions and Wiring:
- Lead Length: 18 in. input and output wires
Compatibility and Installation Notes:
Confirm controller and load compatibility before wiring. The relay interface should be installed by a person familiar with the controlled circuit, required enclosures, and applicable electrical practices.
FAQ:
Which DIG controllers are referenced?
720A, 740A, and 760A.
Does this directly power a pump?
No. It provides relay contacts for a compatible control circuit.
