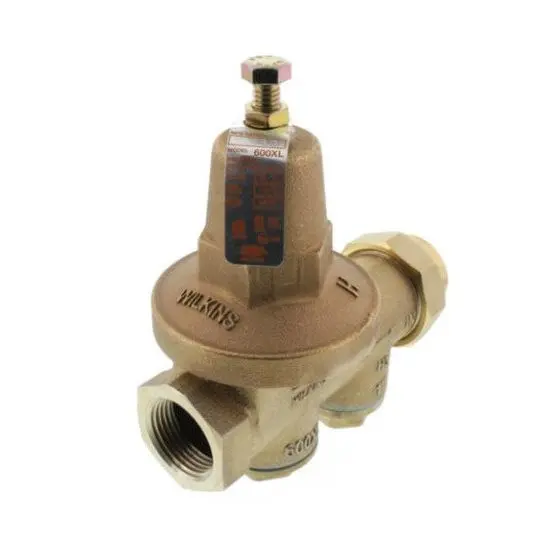

Zurn Wilkins 1-600XL 1″ Lead Free FNPT Union x FNPT Pressure Reducing Valve

Zurn Wilkins Model 34-600XL 1″ Water Pressure Reducing Brass Valve with Integral By-pass Check Valve and Strainer, FNPT Union x FNPT, Lead Free

Ideal for use where Lead-Free* valves are required. Designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. The integral strainer makes this device most suitable for residential and commercial water systems requiring frequent cleaning because of sediment and debris. The direct acting integral by-pass design prevents buildup of excessive system pressure caused by thermal expansion. The balanced piston design enables the regulator to react in a smooth and responsive manner to changes in system flow demand, while at the same time, providing protection from inlet pressure changes.

Standards Compliance

• ASSE® Listed 1003

• IAPMO® Listed

• CSA® Certified

• City of Los Angeles Approved

• NSF® Listed – Standard 61 & 372*

• Certified to NSF/ANSI 372* by IAPMO R&T *(0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT)

Materials Main valve body Low Lead Cast Bronze ASTM B 584

Features Sizes: 1″

Maximum working water pressure 300 psi

Maximum working water temperature 140°F

Reduced pressure range (standard) 25 psi to 75 psi

Factory preset 50 psi

Hydrostatic test pressure 300 psi
