Spec Sheet

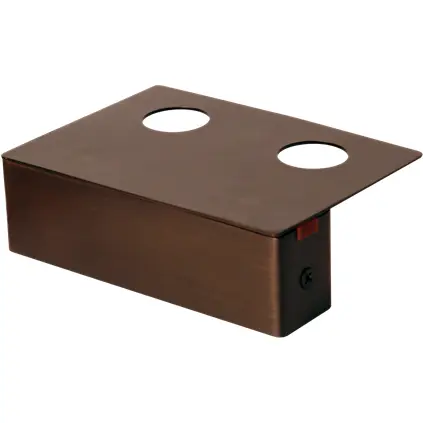

The Vanguard is a step beyond the normally recessed wall light and is perfect for illuminating short retaining walls and other niche locations. The Vanguard cover directs and spreads light to the intended area. The extendable mounting plate secures the fixture while still allowing face plate adjustments. The frosted lens is perfect for the desired light output.
VANGUARD5 BR NL 25’WL WB
| Materials | Crafted from brass. |
| Body | Precision formed brass. |
| Cover | Machined brass. |
| Lens | Shock resistant, frosted lens. |
| Lamp | For use with FLEX GOLD™ Series T3 LED lamps, available in 1W and 2W, 3000K color temperature. Also compatible with 10 Watt Astro-Brite lamps. |
| Electrical Requirements | A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen spec-vanguard5lamps is 10.8V to 12V. Voltage range for 12V FLEX GOLD™ Series T3 LED lamps is 10V-15V. |
| Socket | Specification grade, beryllium copper lamp holder. GU5.3 base. |
| Wiring | Exclusive UF Intelli-Flex wire with anti-moisture migration connections. |
| Mounting Hardware | Mounting plate and extension brackets. |
Specifications:
- Solid brass construction
- Specification grade beryllium copper socket
- Premium grade direct burial cable
- Frosted borosilicate lens
- 2W max. LED lamp / 20W max. halogen
- Mounting hardware included
- Weathered brass finish standard
- Limited lifetime warranty
