Spec Sheet

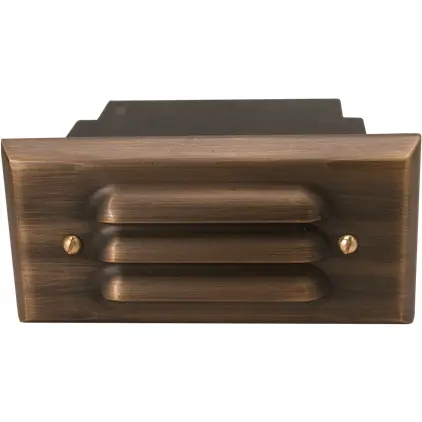

The Sovereign is a step beyond the normally recessed step light. Perfect to illuminate stairs, benches, short retaining walls and other niche locations. The Sovereign pane and louvered cover direct and spread light to the intended area. The mounting box secures the fixture while still allowing face plate adjustments.
SVN5 LOUVER BR NL 25’WL WB
SVN8 LOUVER BR NL 25’WL WB
| Materials | Crafted from cast brass and PBT injection molded housing. |
| Faceplate | Stamped brass, louvered faceplate. |
| Lens | Shock resistant, frosted glass lens. |
| Lamp | For use with FLEX GOLD™ Series T3 LED lamps, available in 1W and 2W, 3000K color temperature. Also compatible with up to 20 Watt Astro-Brite lamp. |
| Electrical Requirements | A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 12V FLEX GOLD™ Series T3 LED lamps is 10V-15V. |
| Socket | Specification grade, beryllium copper lamp holder. GU5.3 base. |
| Wiring | Exclusive UF Intelli-Flex wire with anti-moisture migration connections. |
| Mounting Hardware | Mounting screws and anchors with foam leveling gasket. |
Specifications:
- Solid brass construction
- Specification grade beryllium copper socket
- Premium grade direct burial cable
- Frosted borosilicate lens
- 2W max. LED lamp / 20W max. halogen
- Mounting hardware included
- Weathered brass finish standard
- 15 year warranty
