Spec Sheet
Unique Lighting Systems continues to offer lighting professionals Innovative Lighting Solutions that Last a Lifetime. Unprecedented in the industry, the Pro-Force transformer offers ease of installation unlike any other in the market today. The commercial-grade 300 and 600 Watt options are designed specifically for permanent, vandal-resistant hard-wired installation per UL 2108 requirements. All models also feature 12-24 volt secondary taps to offer more flexibility for longer wire runs while compensating for voltage loss.

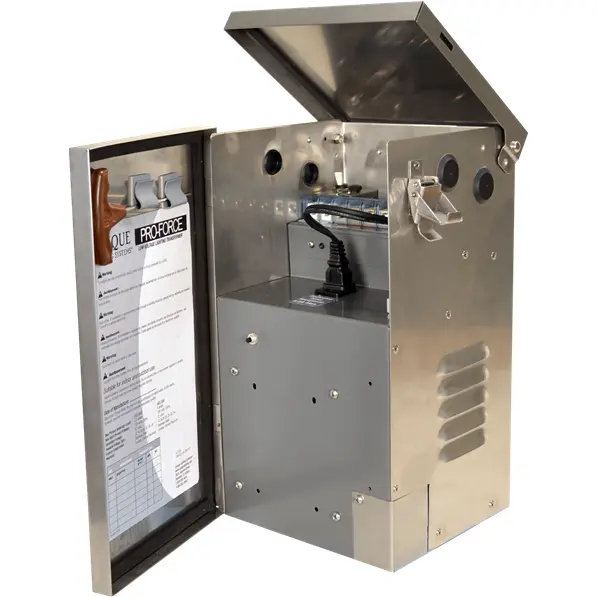

600IF-PRO (600W, stainless steel, secondary lugged)
Specifications:
- Core:
- Engineered single core design with precision grain-oriented steel laminations. High temperature glass-impregnated nylon bobbin and solid copper mag. wire. To ensure robust construction, each output tap is soldered to the mag wire for optimum connectivity.
- Construction: 304 stainless steel (complies with NEMA 3R).
- Primary Protection:
- One 25A breaker for 300W
- Two 25A breakers for 600W
- Power: Unit must be hardwired per UL 2108 requirements.
- Electrical Requirements:
- Available power ratings 300 and 600 Watts. Primary voltage is 120 volts, secondary voltage varies from 12V-24V outputs to offer more flexibility for longer wire runs while compensating for voltage loss.
- Output Terminal:
- Tinned 6061-T6 aluminum lug strip with 3mm hex set screw for a positive torque connection. Includes 3mm hex key tool with every transformer.
- Auto LED Work Light:
- LED work light will illuminate when the transformer door is open, and turn off when door is closed, allowing easy installation in low-light conditions.
- Finish:
- Stainless Steel finish is standard. Unique Lighting’s Weathered Brass finish is a “living finish” and will naturally patina and change over time.
Dimensions:
- Height: 13.5″
- Width: 8″
- Depth: 8″
