UC206-18 Bearing for Universal Products

One New Aftermarket Replacement UC206-18 Insert Ball Bearing – 1-1/8″ Bore

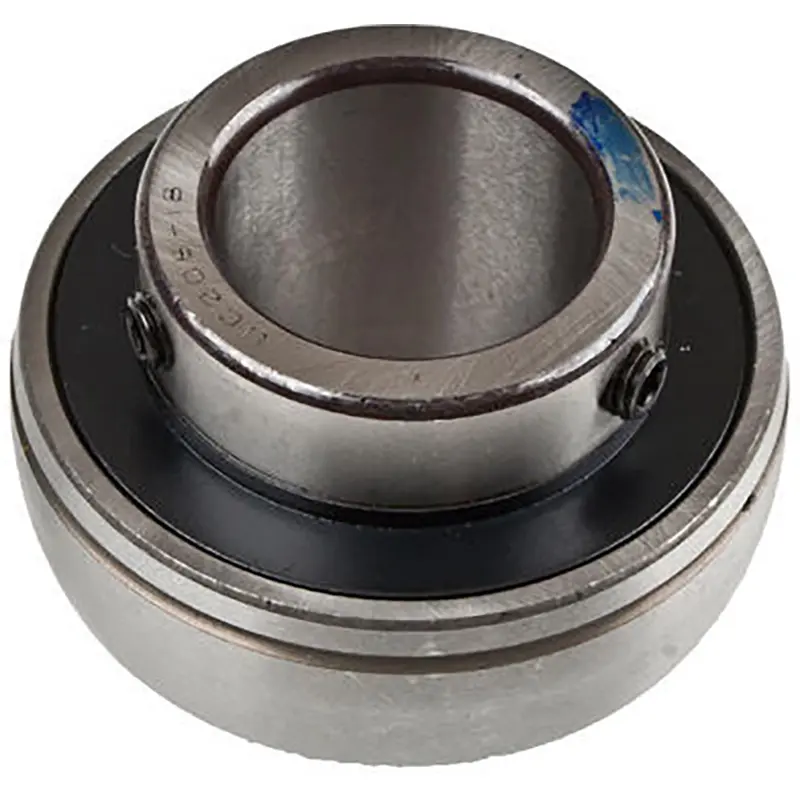

The UC206-18 is a radial insert ball bearing (also known as a wide inner ring insert bearing) with a 1-1/8″ bore. It features set-screw locking on the extended inner ring to secure the bearing onto a shaft, a self-aligning spherical outer ring, and a single lip seal with factory pre-lubrication. The UC206-18 is part of the UC200 Series and serves as the insert for pillow block, 2-bolt flange, 3-bolt flange, 4-bolt flange, and take-up unit housings. It is widely used in agricultural equipment, construction equipment, conveyor systems, forestry machinery, and other industrial applications.

Specifications

• Bearing Type: Radial Insert Ball Bearing (UC200 Series)
• Bore (Inner Diameter): 1-1/8″ (28.575 mm)
• Outer Diameter: 62 mm
• Overall Width (B): 38.1 mm
• Outer Ring Width (C): 19 mm
• Locking Method: Set screw (two set screws on extended inner ring)
• Sealing: Single lip seal, pre-lubricated with grease, relubricatable
• Self-aligning spherical outer ring

Compatible Housing Units

This insert bearing fits the following housing types (sold separately): Pillow Block (P206 housing, UCP206-18), 2-Bolt Flange, 3-Bolt Flange, 4-Bolt Flange, and Take-Up Units. Suitable for use in agricultural machinery, construction equipment, conveyor systems, forestry equipment, and general industrial drive applications requiring a 1-1/8″ shaft bore.

Replaces Part Number(s):

UC206-18

Aftermarket Interchange Numbers

VS-218, INS-SC-102, GY1102KRRB, YW250-1-1/8, UG218NL, UC206-102D1, YAR206-102, UC206.18

New aftermarket replacement part – not remanufactured, not used.
