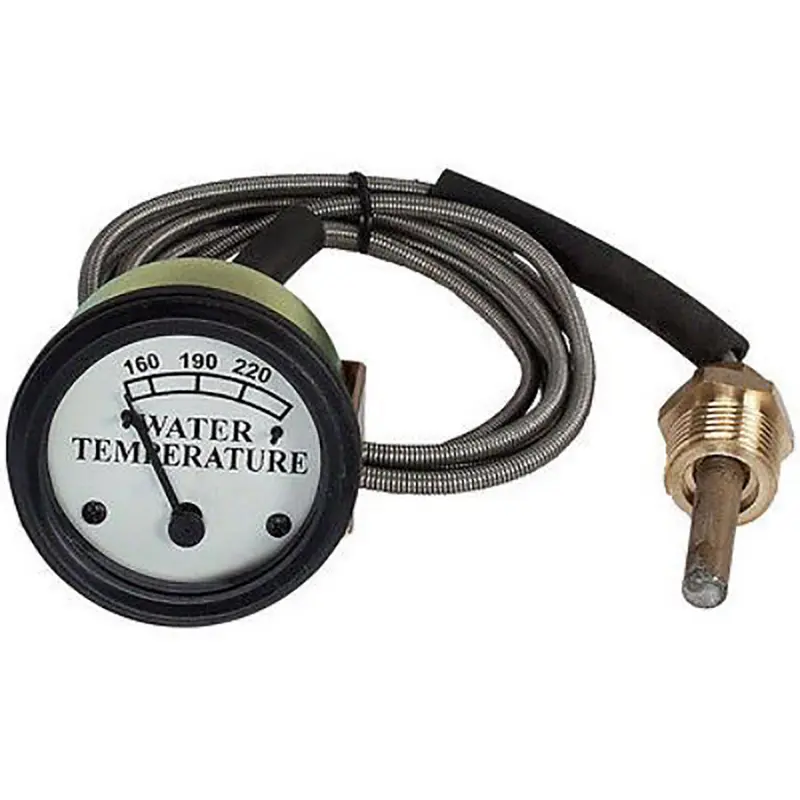

One New Aftermarket Replacement Water Temperature Gauge for John Deere (JD) Two-Cylinder Tractors
This capillary-type water temperature gauge monitors engine coolant temperature on classic John Deere two-cylinder tractors. It features a metal base, glass lens, white face, and black bezel, and uses a 6-foot (72-inch) capillary lead with a 5/8″-18 NF threaded end and a 1/2″ NPT pipe bushing for installation. The plain white face does not carry the John Deere logo. This gauge can also be installed on later models, but note that the face plate color is not correct for tractors produced after mid-1952. Measure the capillary length required for your specific tractor before ordering.
Important: Due to sensor location on the water manifold, the following serial numbers may cause the gauge to read hotter than normal: M to SN 45409, MC to SN 15062, MI to SN 10649, MT to SN 31936.
Specifications
- Type: Water Temperature Gauge
- Face: White, plain (no John Deere logo)
- Bezel: Black
- Outside Diameter: 2″
- Temperature Range: 140-230 degrees F
- Capillary Lead Length: 72 inches (6 feet)
- Probe Thread: 5/8″-18 NF
- Pipe Bushing: 1/2″ NPT
- Construction: Metal base, glass lens
Compatible Models
John Deere Two-Cylinder Tractors (styled series, to mid-1952 where noted): A, AH, AI, AN, ANH, AO, AOS, AR, AW, AWH, B, BI, BN, BNH, BO, BR, BW, BW40, BWH, BWH40, D, DI, G, GH, GM, GN, GW, H, HN, HNH, HW, HWH, M, MC, MI, MT, R (some, to mid-1952)
Replaces Part Number(s):
AA1342R, AM1609T, AM610T
Aftermarket Interchange Numbers
GAH30-0031
New aftermarket replacement part – not remanufactured, not used.
