Sperry Instruments DSA600TRMS True RMS Clamp Meter, 600A AC

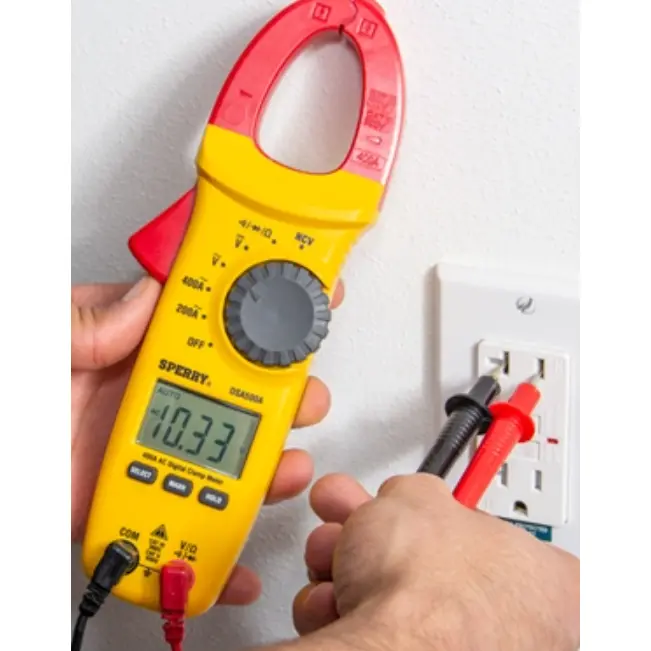

Sperry Instruments DSA600TRMS True RMS Clamp Meter

Brand: Sperry Instruments | SKU: DSA600TRMS

Product Overview

Measure AC current around a conductor with this True RMS clamp meter, and use its test leads for compatible voltage, resistance and continuity checks. The Sperry DSA600TRMS also includes non-contact voltage detection, a backlit display and data hold for field troubleshooting. Review the model and instrument markings before use, especially for circuit ratings.

Key Features

• True RMS measurement and 600A AC clamp-current range.
• Non-contact voltage detection and audible continuity.
• Backlit display, data hold, low-battery indication and automatic power off.
• Temperature, frequency and capacitance functions listed in Sperry’s clamp-meter guide.

Common Uses

Electrical service checks that call for clamp-current measurement and compatible voltage, resistance or continuity tests.

Technical Specifications

• Sperry Instruments model DSA600TRMS; manufacturer leaflet describes 12 functions.
• AC current: up to 600A; AC/DC voltage: up to 600V, per Sperry’s model guide.
• Safety category listed in the manufacturer leaflet: CAT III 600V. Confirm the marking on the actual instrument and leads.

Compatibility & Use Notes

Inspect the meter and leads, choose the correct test function, and follow the instrument instructions. Never exceed the ratings marked on the meter or test leads.

Frequently Asked Questions

Does it measure DC current with the clamp?

Sperry’s model guide lists AC clamp current up to 600A and does not list DC clamp current for DSA600TRMS.

Does it have a backlit display?

Yes. The manufacturer leaflet lists a backlit screen and data hold.

Why Buy This Meter

The DSA600TRMS combines 600A AC clamp readings with True RMS and common field test functions in one handheld instrument.
