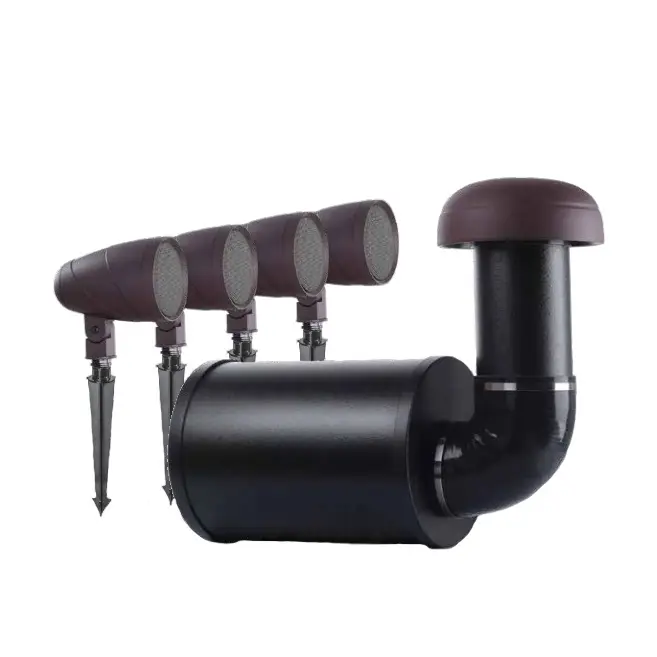

Sound by Vista – SBV-10-4 Four (4) 4″ Speakers four; (4) ground-stakes; and One (1) 10″ Subwoofer

Install Manual

Built to entertain—and for the elements.

This system was built from the inside out to endure the harshest weather. ASA construction offers superior UV resistance, resisting fading while protecting inner components. It won’t chip or peel, and can withstand temperatures from -15 to 160 degrees Fahrenheit.

Speakers require an amplifier to work.

Subwoofer:

• 10″ (25.4 cm) Dual VC Long Throw Driver
• PP Waterproof Cone with Rubber Surround
• Magnet Structure: 33 oz.
• Power Handling: 150W
• Frequency Response: 40–85Hz ± 3 dB
• SPL: 90 dB @ 1w/1m
• PVC Bass Chamber
• Tuned Port with Flexible Rubber Elbow
• Acrylonitrile styrene acrylate (ASA) top hat to withstand harsh weather conditions
• Dimensions: 12.68″ × 16.54″ (32.2 cm × 42 cm)
• Can be mounted vertically or horizontally

Speakers:

• 4″ (10.16 cm) PP Waterproof Cone with Rubber Surround
• Tweeter: 0.75″ (1.9 cm) Marine Grade PEI Tweeter
• Frequency Response: 80Hz–20kHz
• SPL: 87 dB @ 1w/1m
• Power Handling: 100W
• Made with acrylonitrile styrene acrylate (ASA) to withstand harsh weather conditions
• Comes with 11″ Ground Stake
• Dimensions (D x L x H): 5″ × 7.6″ × 7.7″ (without stake), or 12.7 cm × 19.3 cm × 19.6 cm
