Ring 180898M1 Fits Massey Ferguson TO20 TO30 TO35

One New Aftermarket Replacement Hydraulic Lift Piston Ring Kit Fits Massey Ferguson and Fits Ford Tractors

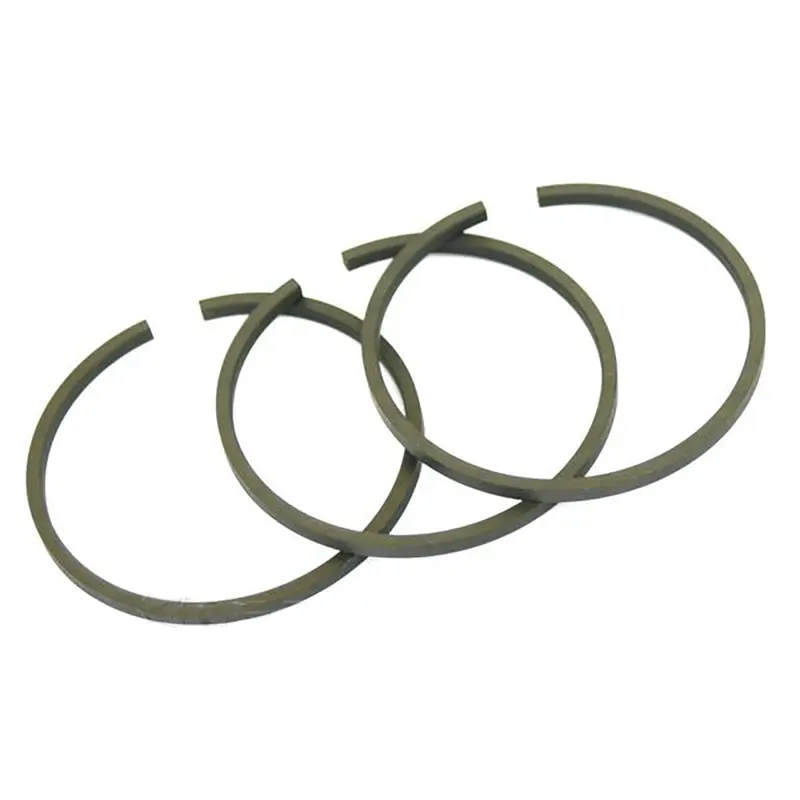

This set of 3 cast rings seals the 2-1/2″ diameter hydraulic lift piston in the rockshaft cylinder of Fits Ferguson and Fits Ford N-Series tractors. Worn or leaking piston rings cause hydraulic lift drift and loss of implement holding pressure — replacing the ring set restores proper lift function. Designed for use with the 9N530B-style piston. Note: some later applications use a different piston diameter — measure your existing piston before ordering.

Specifications

• Set of 3 cast rings
• For 2-1/2″ (63.5mm) diameter hydraulic lift piston
• Compatible piston: 9N530B (ring-style); O-ring style piston requires different components

Serial Number Restrictions

• Fits Massey Ferguson TO35: fits up to serial number 179304
• Fits Massey Ferguson 202: fits up to serial number 301660
• Fits Massey Ferguson 35 (3-cylinder): fits up to serial number 65684

Compatible Models

Fits Massey Ferguson TE/TO Series: TE20, TEA20, TED20, TEF20, TO20, TO30, TO35 (up to s/n 179304)

Fits Massey Ferguson: 35, 35X, F40, 50, 65, 202 (up to s/n 301660)

Fits Ford/New Holland: 2N, 8N, 9N, NAA (Jubilee)

Fits Massey Harris: 50

Replaces Part Number(s):

180898M1, 180898V1, 830663M91, 9N675, 47B47, 86551101

New aftermarket replacement part – not remanufactured, not used.
