RH Spindle Kit Fits Ford/New Holland Replaces 81816581

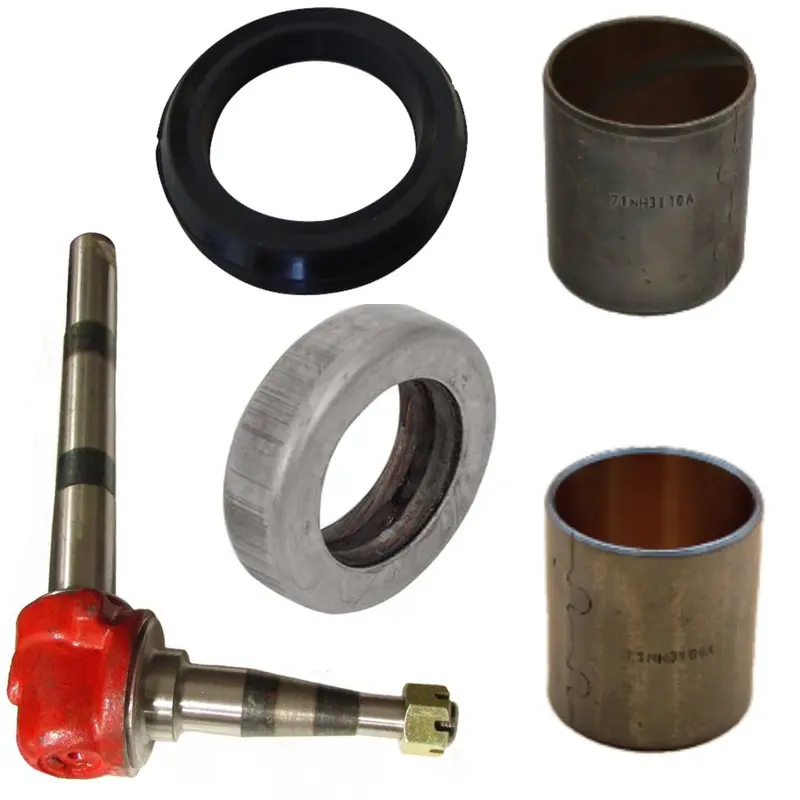

One New Aftermarket RH Spindle Kit

Tech Info:
 -(1) Right Hand Spindle
 -11.687″ long
 -1.25″ upper diameter
 -1.340″ lower diameter
 -1.25″ inner stub diameter
 -0.750″ outer stub diameter
 -Keyway is 0.235″ Width x 0.914″ Length
 -Replaces Part Numbers: 81816581, 81874994, C5NN3105U, C7NN3105K, F2NN3105AA
 -
 -(1) Thrust Bearing
 -Bearing Type Spindle Bearing
 -Inner Diameter 1.350″
 -ID Type Round
 -Outer Diameter 2.200″
 -Sourced Import
 -Width Overall 0.620″
 -Replaces Part Number: 83910196, C0NN3123B
 -
 -(1) Front Spindle Bushing
 -4 used per tractor
 -1.255″ inside diameter
 -1.378″ outside diameter
 -1.498″ long
 -Must be honed or reamed to size when installed
 -Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, HC2N3109
 -
 -(1) Spindle Bushing
 -Inner Diameter: 1.350″
 -Material Steel
 -Outer Diameter: 1.480″
 -Width 1.500″
 -Replaces Part Numbers: 81717392, 83928345, 947E3110B, 957E3110B, NCA3110A
 -
 -(1) Spindle Seal
 -33mm Inner Diameter
 -44mm Outer Diameter
 -Replaces Part Number: 81802812, 8N3528, C5NN3125A, 9N3528

Made to Fits Ford/New Holland:
 Tractor Models: 2000, 3000, 2600, 2610, 3600, 3610, 3900, 4100
 Model Breaks: 1976-81 without Cab – 2600, 2610, 3600, 3610, 3900, 41001965-75 Vineyard – 2000, 3000
 Replaces Part Number(s): 81816581, 81874994, C5NN3105U, C7NN3105K, F2NN3105AA
