Replacement Horizontal Manifold with Gaskets and Studs/Nuts Fits Ford Dexta Super Dexta

One New Aftermarket Replacement Horizontal Exhaust Manifold Install Kit Fits Ford (Fordson) Dexta and Super Dexta Tractors

This horizontal exhaust manifold install kit provides everything needed to replace the exhaust manifold on Fordson Dexta and Super Dexta tractors powered by the Perkins 3-cylinder A3.144 (CB) and A3.152 (CD) engines. The kit includes a new downswept horizontal exhaust manifold, a head-to-manifold gasket, and four stud-and-nut sets for a complete bolt-on installation. Fits Ford, Fordson, and Fits Massey Ferguson equipment sharing these Perkins engine platforms.

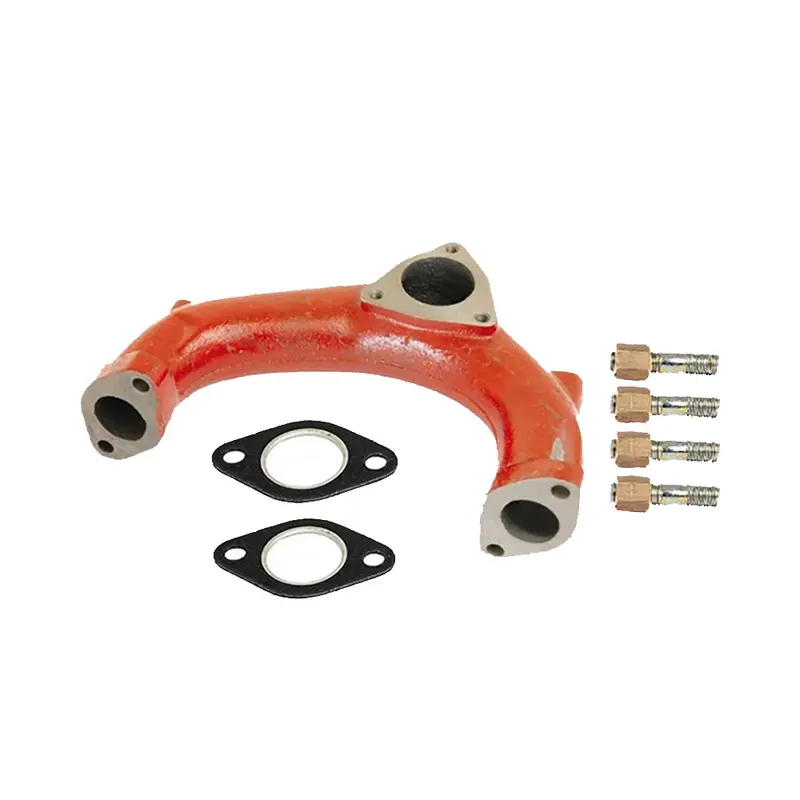

Kit Includes

• (1) Horizontal Exhaust Manifold – 3 Cylinder, 90 Degree Horizontal Type – Replaces: 957E9430B, 81718231
• (1) Manifold Gasket – Fits Manifold to Head – Bolt Holes: 2 – Size: 48 x 77mm – Thickness: 0.06″ (1.6mm) – Replaces: 81718248, 957E9448, 731268M1, 4223501M1, 0490481
• (4) Stud and Nut – Thread: 3/8″-24 UNF – Length: 1-5/8″ – Replaces: 734697M1, 731862M1, 0826232, 731866M1, 0826439, 0826481, 0826403

Compatible Models

Fits Ford / Fordson: Dexta, Super Dexta

Perkins Engine Series: A3.144 (CB), A3.152 (CD)

Fits Massey Ferguson: Models equipped with Perkins A3.144 or A3.152 3-cylinder engines (cross-reference gasket and stud numbers verified)

Replaces Part Number(s):

957E9430B, 81718231, 81718248, 957E9448, 734697M1, 731862M1, 0826232, 731866M1, 0490481, 0826439, 0826481, 0826403

New aftermarket replacement part – not remanufactured, not used.
