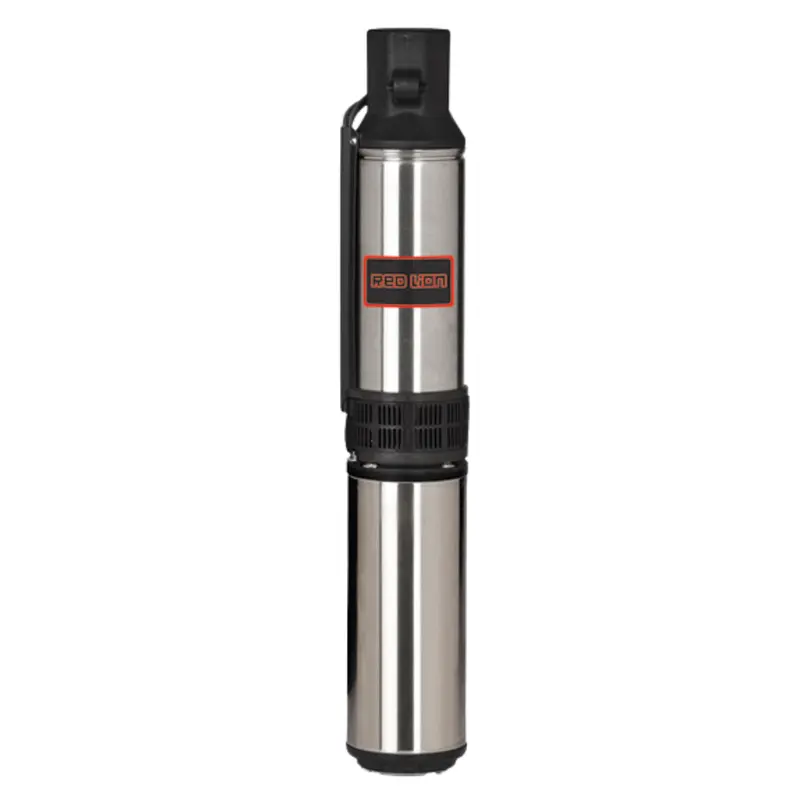

Red Lion RL12G07-3W2V — 3/4 HP 12 GPM 4″ Submersible Well Pump
The Red Lion RL12G07-3W2V is a high-efficiency, 3-wire, 230-volt deep-well submersible pump designed for residential clean-water supply from wells up to 300 ft. With a stainless steel motor, built-in check valve, and thermoplastic impellers, it delivers consistent 12 GPM performance and long service life in demanding well installations.
Key Features & Benefits
- 3/4 HP, 230V, 3-wire motor for reliable deep-well water delivery. Control box included with all 3-wire pumps (1/2–1 hp)
- 12 GPM flow output ideal for homes, cabins, farms, and irrigation.
- Stainless steel pump and motor housing for corrosion resistance and long life.
- Built-in check valve prevents backflow and short-cycling.
- Self-lubricating design suitable for potable water applications.
Applications
- Residential home water systems
- Remote cabins and farm wells
- Livestock and pasture supply
- Light irrigation and water transfer
Specifications
| Model / Item # | RL12G07-3W2V |
| Horsepower | 3/4 HP |
| Flow Rate | 12 GPM |
| Voltage / Phase | 230V, Single Phase |
| Motor Type | 3-Wire . Control box included with all 3-wire pumps (1/2–1 hp) |
| Max Depth / TDH | Up to 300 ft (per pump curve) |
| Outlet | 1-1/4″ NPT |
| Check Valve | Integrated |
| Construction | Stainless Steel & Thermoplastic Stages |
Performance — GPM by Depth
| Depth (FT) | GPM Output |
|---|---|
| 100 ft | 12 GPM |
| 200 ft | 10 GPM |
| 300 ft | 7 GPM |
Model Comparison
| Model | HP | Voltage | Flow (GPM) | Performance Range |
|---|---|---|---|---|
| RL12G07-3W2V | 3/4 HP | 230V | 12 | Up to 300 ft |
| RL12G15-3W2V | 1.5 HP | 230V | 12 | Up to 500 ft |
| RL22G10-3W2V | 1 HP | 230V | 22 | Up to 300 ft |
Common Questions
Q: Does this require a control box?
A: Yes. As a 3-wire pump, it requires a compatible 230V Red Lion control box.
Q: How deep can this pump supply water from?
A: Up to 300 ft, depending on GPM needs.
Q: Is this pump safe for drinking water?
A: Yes — it is designed for potable water systems.
Q: What size pipe does it connect to?
A: 1-1/4″ NPT discharge.
The RL12G07-3W2V provides reliable, efficient deep-well performance for long-term residential water supply.
