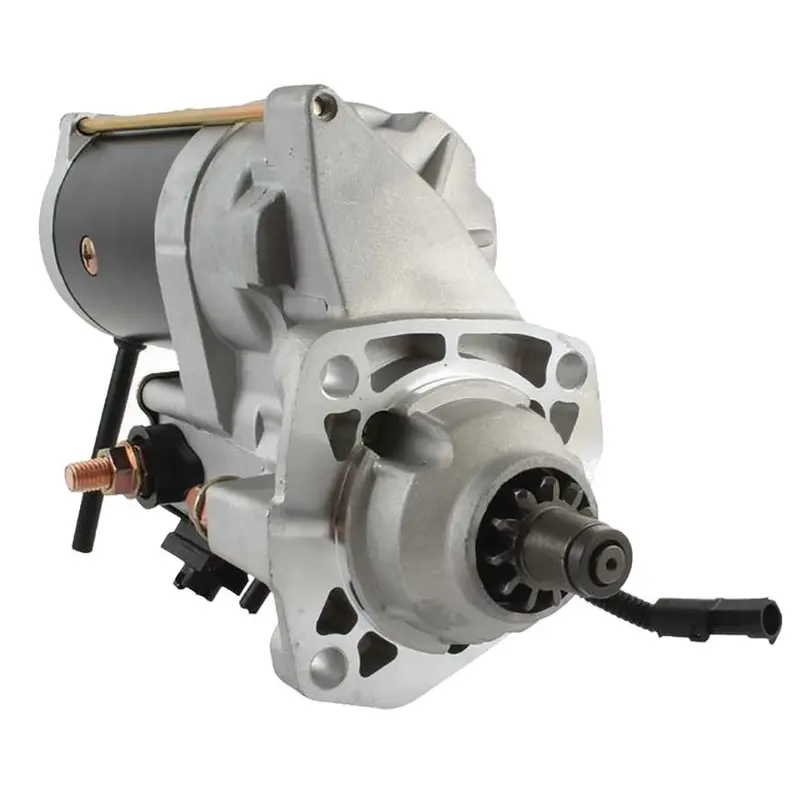

RE506105 Starter Fits John Deere

One New Aftermarket Replacement Starter Fits John Deere (Fits JD) Backhoe Loaders, Skidders, and Loaders

This 12-volt Fits Denso-style OSGR starter is a direct aftermarket replacement Fits John Deere construction and industrial equipment powered by the Fits JD 4045 and 6.8L diesel engines. The starter features an 11-tooth pinion gear, clockwise rotation, wet clutch seal, and three unthreaded 12mm mounting ears — a bolt-in replacement for the original Fits Denso unit.

Specifications

• Voltage: 12V
• Power: 4 kW / 5.36 HP
• Rotation: Clockwise (CW)
• Type: OSGR (Fits Denso-style)
• Teeth: 11
• Gear OD: 1.567 in / 39.8 mm
• Mounting Ears: Three 12.0 mm ID unthreaded
• Includes wet clutch seal

Compatible Models

Fits John Deere Backhoe Loaders: 210LE, 210LJ, 310G, 310J, 310SG, 310SJ, 315SG, 315SJ, 325J, 410G, 410J, 710J

Note – Serial Number Restrictions: 310SG and 315SG with engines 4045DT056 / 4045DT058 require s/n 257522 or later; engines 4045TT080 / 4045TT081 fit s/n up to 908991 only. 748G Skidder fits s/n up to 101065 only. Verify engine serial number before ordering.

Fits John Deere Log Skidders: 540G, 640G, 648G, 740G, 748G (s/n -101065)

Replaces Part Number(s):

RE506105, SE501853, SE506105

Aftermarket Interchange Numbers

Also replaces: RE504244, RE528619, RE529661, RE70473, RE70959, SE501866, TY24440 (Fits John Deere); 228000-6540, 228000-6541, 228000-9140, 228000-914, 428000-4080 (Fits Denso); Lester 18568; Wilson 91-29-5579

New aftermarket replacement part – not remanufactured, not used.
