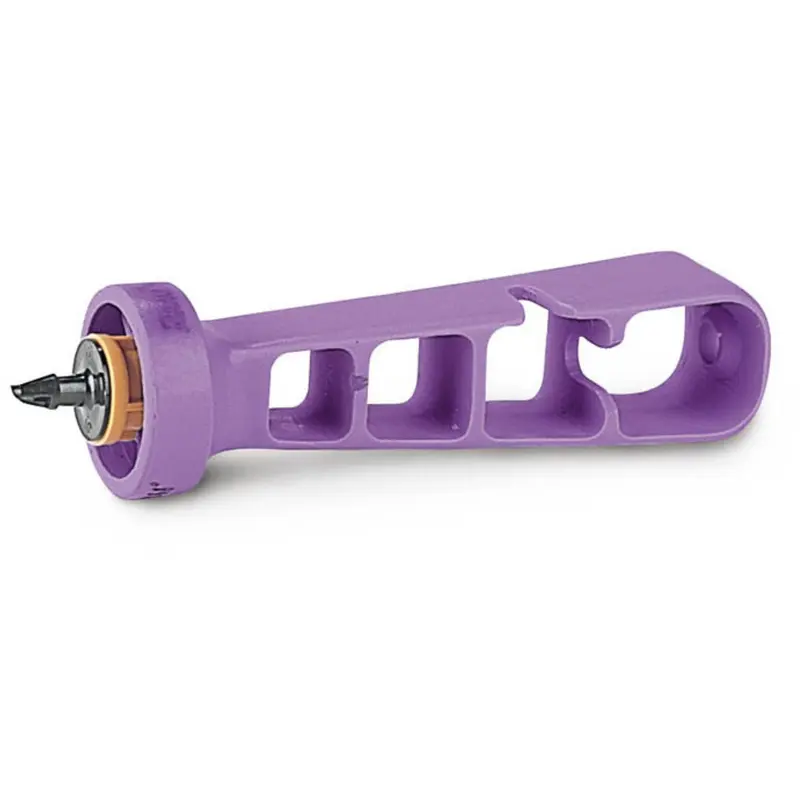

Rain Bird XMTOOL Xeriman Emitter Installation Tool

Rain Bird XMTOOL Xeriman Emitter Installation Tool

Brand: Rain Bird | SKU: XMTOOL

Product Overview

Add an emitter where a plant needs water with the Rain Bird XMTOOL Xeriman tool. It helps insert compatible Xeri-Bug emitters and PC Modules into suitable drip tubing, removes emitters and assists with 1/4-inch barbed fittings and goof plugs. Choose it for small outlet work rather than for installing large inline XF fittings.

Key Features

• One tool assists with emitter insertion, emitter removal and goof-plug installation.
• Works with compatible Xeri-Bug emitters and PC Modules.
• Assists with 1/4-inch barbed couplings and tees.
• Supports outlet installation into suitable 1/2- or 3/4-inch drip tubing, XF Dripline or Landscape Dripline.

Common Uses

• Adding individual drip outlets to a suitable supply tube.
• Removing a compatible emitter or installing a goof plug in an unwanted outlet hole.

Technical Specifications

• Merchant SKU: XMTOOL; manufacturer model: XM-TOOL.
• Type: manual Xeriman emitter installation tool.
• Emitter applications: compatible Rain Bird Xeri-Bug emitters and PC Modules.
• Fitting applications: compatible 1/4-inch barbed fittings, including couplings and tees.
• Additional functions: emitter removal and goof-plug insertion.

Compatibility & Installation Notes

For insertion, place the compatible emitter on the end of the tool and press its barbed point into the side wall of suitable tubing. Pull the tool away, leaving the emitter installed, then connect the required 1/4-inch outlet tubing.

Use the tool’s side to remove a compatible emitter and its bottom to install a suitable goof plug. Check the repaired connection for leaks when the system runs.

Choose FITINS-TOOL for its specified large XF flanged fittings. XMTOOL serves a different job; do not assume its 1/4-inch fitting function means it installs every 17mm inline fitting.

Frequently Asked Questions

Does XMTOOL work with Xeri-Bug emitters?

Yes. Rain Bird specifies it for installing compatible Xeri-Bug emitters and PC Modules in suitable drip tubing.

Can it install 1/4-inch fittings?

Yes. The manufacturer instructions identify 1/4-inch barbed couplings and tees among its uses.

How do I remove an emitter or seal an unwanted hole?

Use the side of the tool to remove a compatible emitter. Its bottom helps install a suitable goof plug. Check for leaks afterward.

Is it the same as the XF fitting insertion tool?

No. XMTOOL handles emitters, small barbed fittings and goof plugs. FITINS-TOOL is the separate tool specified for selected large XF flanged fittings.
