Rain Bird XCZ075PRF 3/4-Inch Low-Flow Control Zone Kit

Rain Bird XCZ075PRF 3/4-Inch Low-Flow Control Zone Kit

Brand: Rain Bird | SKU: XCZ075PRF

Product Overview

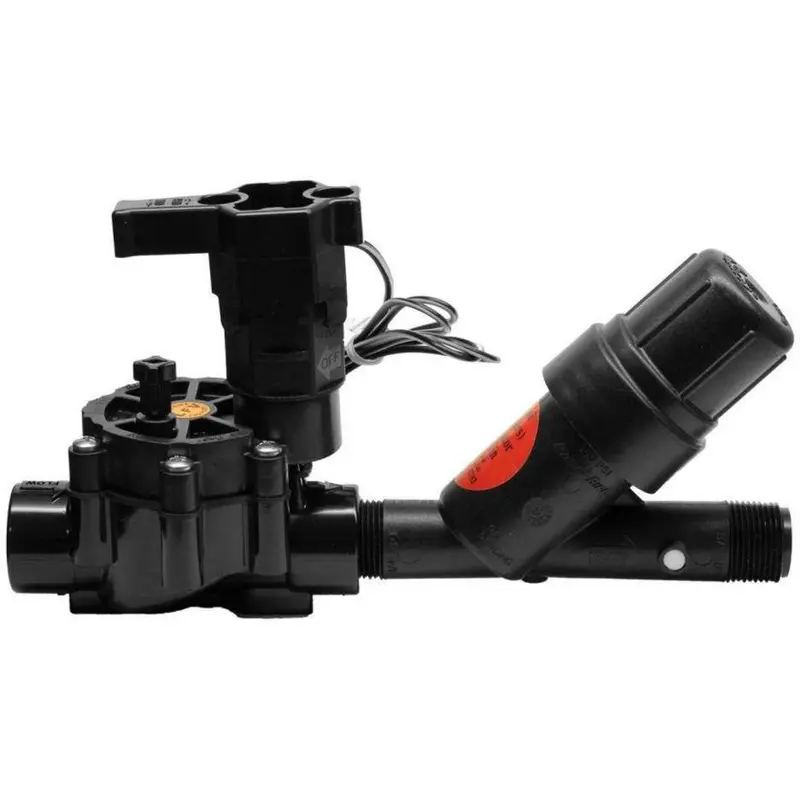

Control a low-flow drip zone with the Rain Bird XCZ075PRF, manufacturer XCZ-075-PRF. This kit pairs a 3/4-inch LFV valve with a 3/4-inch pressure-regulating RBY filter for 0.2–5 GPM service. The filter targets 30 psi downstream when the available inlet pressure and flow meet the manufacturer’s performance chart; it cannot boost a low-pressure supply.

Key Features

• LFV valve is designed for low-flow zone control.
• Combined pressure regulation and filtration downstream of the valve.
• 200-mesh stainless steel screen provides 75-micron filtration.
• Compact 10-inch kit length.
• Factory-connected components reduce field assembly while still requiring final installation and leak checks.

Common Uses

• Small drip zones flowing 0.2–5 GPM.
• Shrub, planting-bed and other low-volume irrigation systems needing compatible 30 psi regulated supply and filtration.

Technical Specifications

• Model: XCZ-075-PRF; merchant SKU: XCZ075PRF.
• Components: 3/4-inch LFV valve and 3/4-inch pressure-regulating RBY filter.
• Recommended flow: 0.2–5 GPM.
• Inlet pressure operating range: 20–150 psi.
• Regulated outlet target: 30 psi, subject to sufficient inlet pressure at the selected flow.
• Filtration: 200-mesh, 75-micron stainless steel screen.

Dimensions

• Kit length: 10 inches.

Compatibility & Installation Notes

Use the XCZ-075-PRF performance chart to check the inlet pressure needed for a 30 psi outlet at the design flow. The bottom of the inlet operating range does not mean a 20 psi supply will produce 30 psi downstream.

Follow the kit’s current installation guide: orient the filter downward, flush as directed before completing the downstream connection, complete the factory-started connection as instructed and check for leaks. Keep the valve upstream of the filter.

Use compatible controller wiring and waterproof connections according to the installation guide. Clean the screen as needed and follow winterization instructions for the site. Select downstream drip components for the regulated pressure and filtration provided.

Frequently Asked Questions

Can it serve a zone below 3 GPM?

Yes. Rain Bird specifies 0.2–5 GPM for XCZ-075-PRF. It is intended for low-flow zones.

Will a 20 psi inlet produce a 30 psi outlet?

No. The filter regulates pressure downward and cannot boost it. Check the performance chart for the inlet pressure needed at the design flow.

What filter screen is supplied?

The XCZ-075-PRF specification lists a 200-mesh, 75-micron stainless steel screen.

Which way should the filter point?

The applicable XCZ-075-PRF installation guide instructs mounting the filter downward. Follow that guide when completing and flushing the assembly.

Why Buy from Big Frog Supply?

Choose XCZ075PRF for a zone whose design flow falls within 0.2–5 GPM, rather than selecting a larger kit from pipe size alone. Its LFV valve and 200-mesh RBY filter combine low-flow control, filtration and a 30 psi regulation target; checking inlet headroom and the 10-inch length helps confirm the hydraulic and valve-box fit before installation.
