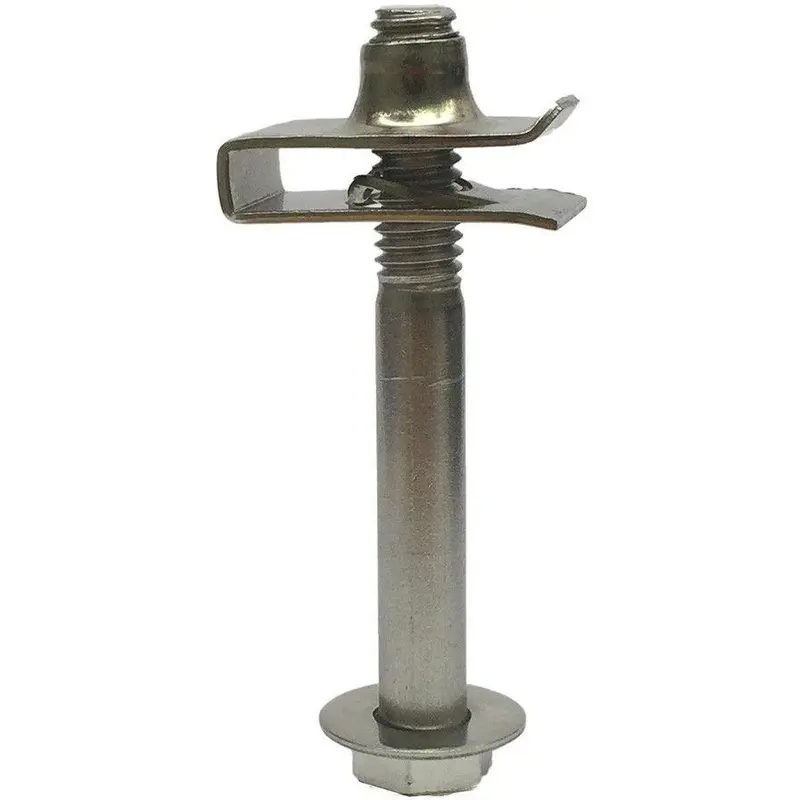

Rain Bird VBLOCKH Hex-Bolt Valve Box Lock Kit

Rain Bird VBLOCKH Hex-Bolt Valve Box Lock Kit

Brand: Rain Bird | SKU: VBLOCKH

Product Overview

Replace missing lid hardware on a compatible Rain Bird valve box with the VBLOCKH hex-bolt lock kit. Check that the box and lid have the matching locking provision before ordering.

Key Features

• Hex-head bolt for tool-operated lid fastening.
• Kit includes the bolt, washer and retaining clip.
• Replacement hardware for compatible Rain Bird valve-box lids.

Common Uses

• Replacing lost or damaged hex-bolt lid hardware.
• Securing an irrigation valve-box cover after maintenance.

Technical Specifications

• Model: VBLOCKH / VB-LOCK-H.
• Manufacturer part number: A11466.
• Head style: hex.
• Bolt size: nominal 3/8-inch diameter x 2-1/4-inch length.
• Included components: bolt, washer and clip; valve box and lid are separate.

Dimensions

Bolt length is 2-1/4 inches. The 3/8-inch designation is the nominal bolt diameter, not the size of the complete lock assembly.

Compatibility & Installation Notes

Match the locking hole and clip location on the existing lid and box. Assemble the washer and clip with the replacement bolt in the original locking position, then check that the lid seats correctly. Choose the hex-head version when it matches the site’s maintenance tools.

Frequently Asked Questions

What is included with VBLOCKH?

The kit contains a hex-head bolt, washer and clip.

Will it fit a lid without a locking hole?

The lid and box must have a compatible locking provision. Check both before ordering.

Is this the penta-head version?

No. VBLOCKH has a hex head; the penta-head alternative is VBLOCKP.

Why Buy from Big Frog Supply?

Choose VBLOCKH when the box needs hex-head fastening and a replacement washer-and-clip assembly. Its 3/8 x 2-1/4-inch bolt size helps you check the existing hardware before selecting the kit, while the hex head keeps the fastener consistent with hex tools used for site maintenance.
