Rain Bird TSJ12 12-Inch Turf Swing Joint, 1-Inch Male NPT

Rain Bird TSJ12 12-Inch Turf Swing Joint, 1-Inch Male NPT

Brand: Rain Bird | SKU: TSJ12

Product Overview

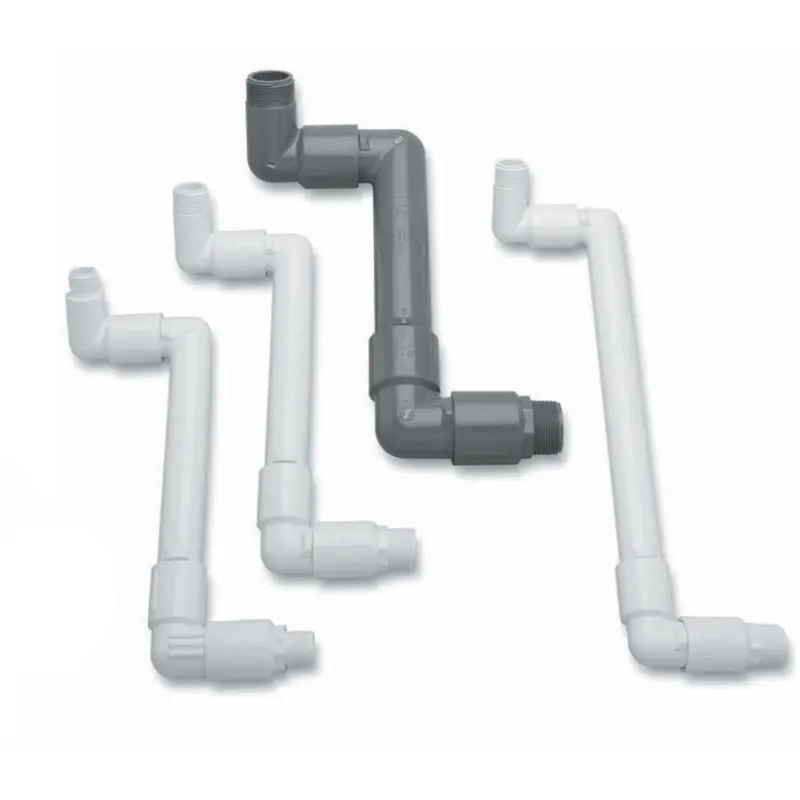

Connect a compatible sprinkler or quick-coupler valve to a lateral line while allowing adjustment to finished grade. TSJ12 is a preassembled, 12-inch turf swing joint with 1-inch male NPT connections at both ends.

Key Features

• Adjustable swing assembly helps position the head at the required grade.
• Swept elbows provide a smooth flow path that reduces pressure loss.
• Double O-ring seals help protect rotating joints against leaks and debris.
• Large grips and visible stops assist hand assembly.

Common Uses

Connecting compatible 1-inch-inlet rotors or quick-coupler valves to lateral irrigation piping, and replacing a matching 12-inch swing-joint assembly.

Technical Specifications

• Model: TSJ12 / TSJ-12.
• Manufacturer item: A66705.
• Inlet and outlet: 1-inch male NPT × 1-inch male NPT, nominal.
• Material: Rigid PVC, Type I.
• Pressure rating: 315 psi at 73°F.
• Pressure regulation: None.
• Published 1-inch joint pressure loss: 1.5 psi at 18 GPM; 2.5 psi at 23 GPM.

Dimensions

Manufacturer-listed length: 12 inches (30.5 cm). The 1-inch connection designation is a nominal pipe-thread size.

Compatibility & Installation Notes

Confirm matching female NPT connections at the lateral fitting and sprinkler or quick coupler. Position the assembly to bring the connected device to finished grade. Use the grips and visible stops when assembling the rotating joints, and avoid overtightening. Select operating conditions suitable for every component in the system; the joint’s pressure rating does not establish the sprinkler’s required pressure.

Frequently Asked Questions

What connections does TSJ12 have?

TSJ12 has a nominal 1-inch male NPT inlet and a nominal 1-inch male NPT outlet. Match both to compatible female NPT connections.

Does TSJ12 regulate pressure?

No. TSJ12 is the standard swing joint without pressure regulation. Rain Bird’s TSJ-PRS models include a pressure-regulating outlet.

What does the 315 psi specification mean?

Rain Bird rates the TSJ swing joint at 315 psi at 73°F. This is a component pressure rating, not a recommended sprinkler operating pressure or a regulated outlet setting.

Why use a swing joint at a sprinkler?

The adjustable assembly lets you position a compatible sprinkler at finished grade while connecting it to the lateral line. Select the joint length and thread size to suit the installation.

Why Buy from Big Frog Supply?

Choose TSJ12 when your layout needs a 12-inch adjustable connection with 1-inch male NPT threads at both ends. Its preassembled PVC body and double O-ring rotating joints suit head-to-grade positioning without building a swing assembly from separate elbows. Confirm the connection sizes and select this standard model when pressure regulation is handled elsewhere or is not required at the joint.
