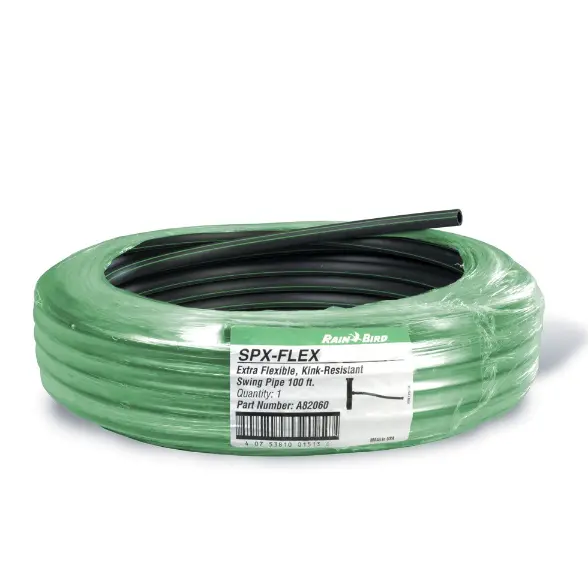

Rain Bird SPXFLEX100 1/2-Inch Extra Flexible Swing Pipe, 100 Feet

Rain Bird SPXFLEX100 1/2-Inch Extra Flexible Swing Pipe, 100 Feet

Brand: Rain Bird | SKU: SPX100 | Model: SPXFLEX100

Product Overview

Build flexible connections between irrigation lateral lines and spray heads or rotors with Rain Bird SPXFLEX100 swing pipe. The 100-foot coil can be cut for individual assemblies, helping position sprinkler heads around hardscape and uneven ground.

Key Features

• Extra flexible tubing routes around obstacles near sprinkler locations.
• Textured outer surface provides grip when working in wet conditions.
• Kink-resistant construction helps with routing during installation.
• Works with compatible SB Series spiral barb fittings for twist-in tubing connections.

Common Uses

Installing spray or rotor swing assemblies, relocating sprinkler heads, and adjusting head placement where a rigid connection would limit positioning.

Technical Specifications

• Manufacturer model / item: SPXFLEX100 / A82060.
• Store SKU: SPX100.
• Nominal size: 1/2 inch.
• Material: Linear low-density polyethylene.
• Maximum operating pressure: 80 psi.
• Maximum operating temperature: 110°F (43°C).
• Connection: Compatible Rain Bird SB Series spiral barb fittings.

Dimensions

• Coil length: 100 feet (30 m).
• Inside diameter: 0.49 inch.

Compatibility & Installation Notes

Select spiral barb fittings with the threaded ends needed for the sprinkler and lateral-line connection. Cut the tubing to suit each assembly and twist compatible barbs into the tubing without glue or clamps. Consider pressure loss for swing-pipe lengths longer than 36 inches, as directed in Rain Bird’s installation tips. Do not use a torch to soften the tubing.

Frequently Asked Questions

What is the difference between the 1/2-inch size and the inside diameter?

The 1/2-inch designation is the nominal swing-pipe size. Rain Bird lists an inside diameter of 0.49 inch for SPX-FLEX tubing.

What fittings should I use?

Use compatible Rain Bird SB Series spiral barb fittings to connect the tubing in a flexible swing assembly. Their barbed connections install by twisting into the tubing without glue or clamps.

Can I use the entire 100-foot coil for one sprinkler connection?

The coil is intended to be cut into lengths for individual swing assemblies. Rain Bird recommends considering pressure-loss calculations for lengths longer than 36 inches. Keep operation within 80 psi and 110°F.

Why Buy from Big Frog Supply?

Choose this 100-foot SPXFLEX100 coil when you need to cut several sprinkler swing connections to suit the site. Its textured, extra flexible tubing helps route around hardscape, while the 0.49-inch inside diameter matches the intended SB Series spiral barb connections. Check the 80 psi and 110°F operating limits and select fitting threads to match each sprinkler before ordering.
