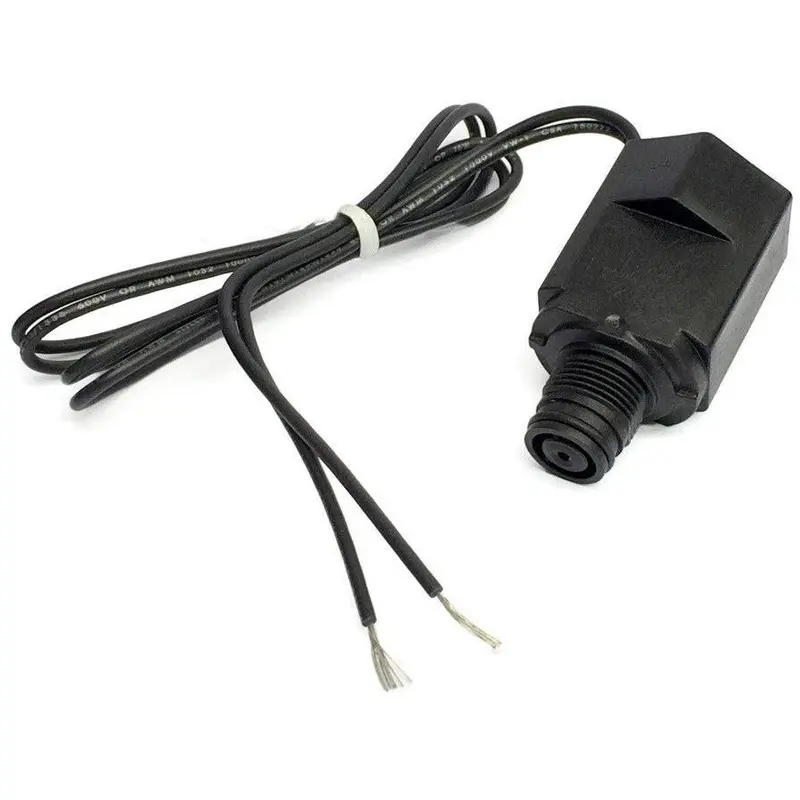

Rain Bird RPKHVSOLA2 24 VAC Solenoid for HV and HVF Valves

Rain Bird RPKHVSOLA2 24 VAC Solenoid for HV and HVF Valves

Brand: Rain Bird | SKU: RPKHVSOLA2

Product Overview

RPKHVSOLA2 is the 24 VAC solenoid replacement for Rain Bird HV and HVF valves. Identify the valve and check the controller output before replacing an electrical component; wiring faults and debris can also cause valve problems.

Key Features

• Manufacturer service part 236307 for HV/HVF valves.
• Direct replacement for previous 24-volt HV/HVF solenoids.
• Replaces the obsolete 231950 HV solenoid repair kit.

Common Uses

• Replacing a confirmed faulty solenoid on an HV valve.
• Servicing an HVF valve while retaining its separate flow-control adjustment.

Technical Specifications

• Model: RPKHVSOLA2.
• Manufacturer part number: 236307.
• Application: Rain Bird 24 VAC HV and HVF valves.
• Supply type: 24 VAC, 50/60 Hz.
• Component type: replacement valve solenoid; not a complete valve.
• Not a 9-volt DC latching solenoid.

Dimensions

Allow clearance to unscrew the solenoid from the bonnet and route the wire leads without strain. Select by HV/HVF model compatibility and service part number rather than the dimensions of the complete valve.

Compatibility & Installation Notes

Turn off the water supply, relieve pressure and disconnect power to the valve circuit before service. Inspect the solenoid seat for dirt and follow the HV/HVF instructions for installation. Use watertight wire connections, then test both electrical operation and shutoff. Do not substitute a DV-family solenoid simply because the wires look similar.

Frequently Asked Questions

Does RPKHVSOLA2 fit both HV and HVF valves?

Yes. Rain Bird identifies part 236307 for servicing 24-volt HV and HVF valves.

Does it replace the older 231950 kit?

Yes. Rain Bird specifies RPKHVSOLA2, part 236307, instead of the obsolete 231950 HV kit.

Is this a battery-operated latching solenoid?

No. This is the 24 VAC HV/HVF replacement; a DC latching application needs its specified solenoid.
