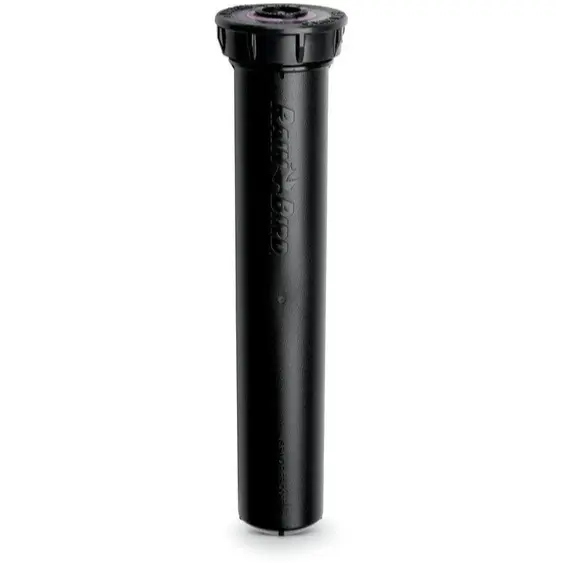

Rain Bird RD06SP30NP 6-Inch SAM 30 PSI Spray Body — Non-Potable

Rain Bird RD06SP30NP 6-Inch SAM 30 PSI Spray Body — Non-Potable

Brand: Rain Bird | SKU: RD06SP30NP

Product Overview

Provide 6 inches of pop-up clearance in a non-potable spray-nozzle zone with Rain Bird RD06SP30NP. The body combines a 30 psi regulator, SAM check valve and purple non-potable identification without Flow-Shield. Allow for the 9-3/8-inch body and bottom-only connection; the nozzle is selected separately.

Key Features

• Triple-Blade Wiper Seal balances flushing and debris protection.
• Debris pockets help keep grit from recirculating inside the body.
• Reinforced ratchet ring supports nozzle-pattern alignment.
• Top-access internal components simplify service.
• Built-in 30 psi pressure regulator.
• SAM check valve helps prevent low-head drainage across elevation changes up to 14 feet.
• Purple non-potable identification with “DO NOT DRINK / NO BEBA” warnings and symbol.

Common Uses

• Non-potable spray-nozzle layouts requiring regulated pressure and drainage protection.
• Replacing a matching RD1800 body after checking pop-up height, features and inlet fit.

Technical Specifications

• Merchant SKU: RD06SP30NP; manufacturer designation: RD06-S-P30-NP.
• Pop-up body: RD1800 6-inch model; nozzle not included.
• Inlet: 1/2-inch female NPT; SAM model uses bottom inlet only.
• Current model-specific technical operating range: 25–100 psi.
• Regulator target: 30 psi; technical regulation range: 35–100 psi inlet. Adequate operating pressure and flow are required.
• SAM check-valve capability: up to 14 feet of elevation head.
• Flow-Shield option: not included.
• Water-use identification: non-potable, purple-marked.
• Watering arc, radius and flow are determined by the selected nozzle and operating conditions.

Dimensions

• Body height: 9-3/8 inches.
• Pop-up height: 6 inches.
• Exposed surface diameter: 2-1/4 inches.

Compatibility & Installation Notes

Check finished grade, the 9-3/8-inch body height and the 6-inch pop-up stroke. Connect through the bottom inlet; the SAM check valve relies on that bottom connection.

Measure operating pressure and confirm the supply supports the 30 psi nozzle target and combined zone demand. A regulator cannot boost inadequate supply pressure.

Choose a compatible Rain Bird nozzle and filter screen, flush before nozzling and align the pattern using the stem ratchet. Follow the selected nozzle’s own radius and arc instructions.

The SAM check valve limits drainage after shutdown; it does not close a leaking upstream control valve.

Select this non-potable model by SKU and purple identification. Family photos and videos may also show standard white covers or other RD1800 options; the included features are listed above.

RD1800 Family Videos

Frequently Asked Questions

Does it include a nozzle?

No. Choose a compatible nozzle and the required screen separately for the desired arc, reach and flow.

Does this model include Flow-Shield?

No. RD06SP30NP includes SAM and 30 psi regulation without Flow-Shield. Choose the matching Flow-Shield model when that service-indication feature is needed.

Can I use a side inlet?

No. This SAM model requires its 1/2-inch female NPT bottom inlet.

Will its regulator increase low supply pressure?

No. The regulator reduces available pressure. The technical specification gives a 35–100 psi inlet range for the 30 psi regulation target; check pressure while the zone operates.

Why Buy from Big Frog Supply?

Choose RD06SP30NP when a 4-inch pop-up does not provide enough clearance and the selected spray nozzle calls for a 30 psi target. The purple non-potable identification and SAM protection for up to 14 feet of elevation head address water-use marking and drainage needs. Check the 9-3/8-inch installation depth; this model does not add Flow-Shield service indication.
