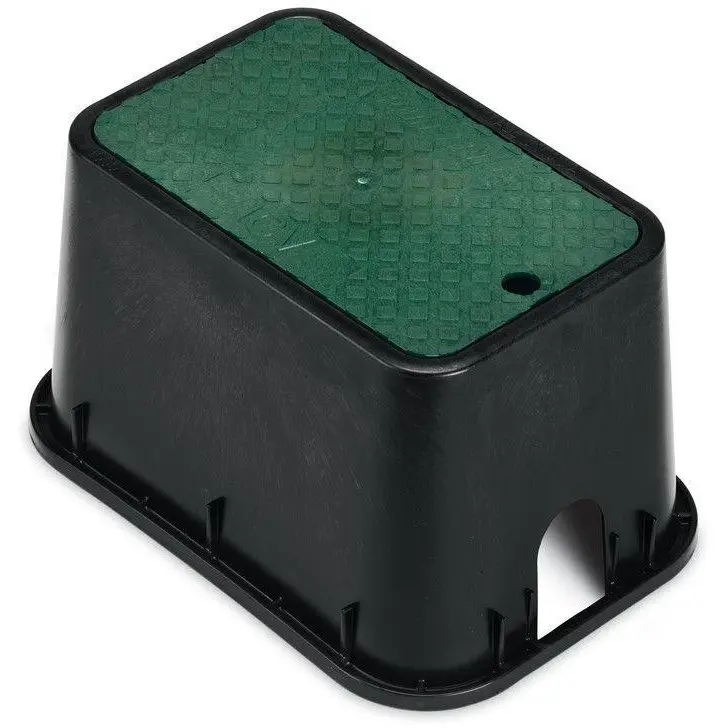

Rain Bird PVBMST 10-Inch Mini-Standard Valve Box

Rain Bird PVBMST 10-Inch Mini-Standard Valve Box

Brand: Rain Bird | SKU: PVBMST

Product Overview

The Rain Bird PVBMST gives you a compact rectangular access point for underground irrigation valves and connections. Its black body and drop-in green lid provide an alternative to a larger Standard box when the assembly fits within the smaller opening and still leaves enough room for service.

Key Features

• Mini-Standard rectangular footprint for compact installations.
• Black plastic body with drop-in green lid.
• Skid-resistant lid texture.
• Molded pipe slots and lower flange support the installation layout.
• Made in the USA.

Common Uses

• Housing an irrigation valve or compact assembly with service access.
• Replacing a matching PVB Mini-Standard box and lid.

Technical Specifications

• Model: PVBMST; manufacturer part number A12516.
• Series: PVB Professional.
• Type: Mini-Standard rectangular body with lid.
• Nominal body depth: 10 inches.
• Body color: black; lid color: green.
• Lid style: drop-in, non-locking.
• Material: plastic.
• Molded pipe slots: one at each end of the full-height body.
• Application: subsurface irrigation access in turf; not for roadway installation.
• Country of manufacture: USA.

Dimensions

• Manufacturer-listed nominal top opening: 15 in. L x 9-1/2 in. W.
• Manufacturer-listed nominal bottom opening: 18 in. L x 12-1/2 in. W.
• Manufacturer-listed nominal body height: 10 in.

Compatibility & Installation Notes

Measure the entire valve assembly, fittings and working clearance before choosing the Mini-Standard size. A component fitting through the top opening does not by itself ensure enough room to remove a solenoid or service the connections.

Align the pipe slots without loading the enclosure against the pipe. Support the flange and surrounding grade appropriately, keep the lid accessible and provide the intended drainage. A valve box is not a watertight container.

Match replacement lids by model and seating dimensions. The 10-inch designation describes body depth; this is a rectangular Mini-Standard box, not a 10-inch round box. Do not install it in a roadway.

Frequently Asked Questions

Is PVBMST a round 10-inch box?

No. PVBMST is a rectangular Mini-Standard box with a nominal 10-inch body height. Its listed top opening is 15 by 9-1/2 inches.

Is the green lid included?

Yes. PVBMST includes the black box body and drop-in green lid.

How many valves fit inside?

That depends on the valve bodies, fittings, pipe spacing and service clearance. Lay out the complete assembly against the listed openings rather than relying on a fixed valve count.

Does it have a locking lid?

Rain Bird’s model table identifies the PVBMST drop-in lid as non-locking. Choose an enclosure designed for the required access-control arrangement if a lock is needed.
