Rain Bird LDQ0812100 1/4-Inch Dripline, 12-Inch Spacing, 100 Feet

Rain Bird LDQ0812100 1/4-Inch Dripline, 12-Inch Spacing, 100-Foot Coil

Brand: Rain Bird | SKU: LDQ0812100

Product Overview

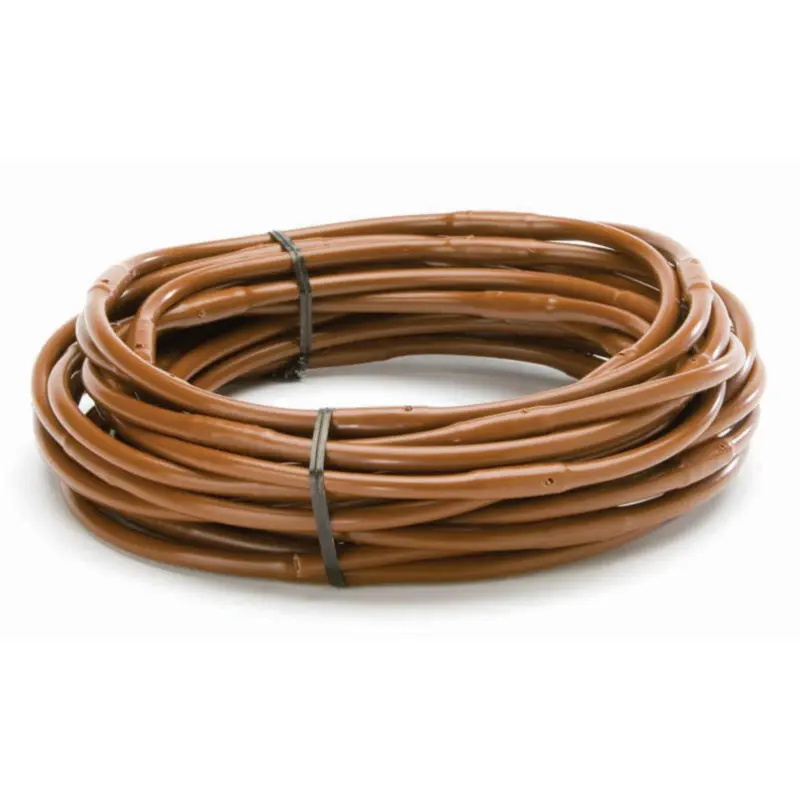

Lay out watering points one foot apart with this flexible brown dripline. LDQ0812100 combines built-in emitters at 12-inch intervals with a 100-foot supply coil for creating several short sections around planting areas.

Key Features

• Built-in emitters spaced 12 inches apart.
• Flexible 1/4-inch tubing for compact planting layouts.
• Built-in filtration and two outlets, 180 degrees apart.
• Accepts Rain Bird 1/4-inch barbed fittings.

Common Uses

Container gardens, planter boxes, vegetable beds, shrubs and short loops around trees.

Technical Specifications

• Model: LDQ0812100.
• Emitter spacing: 12 inches.
• Emitter flow: 0.8 GPH at 30 psi; varies with pressure.
• Operating pressure: 10–40 psi.
• Filtration: 200 mesh (75 micron).
• Maximum run: 33 feet for 12-inch spacing, per Rain Bird’s chart.

Dimensions

Supplied length: 100 feet. Outside diameter: 0.250 inch; inside diameter: 0.170 inch; wall thickness: 0.040 inch.

Compatibility & Installation Notes

Divide the coil into runs within the manufacturer’s limit. Use compatible 1/4-inch barbed fittings and the specified filtration, and keep operating pressure within range. Calculate demand from the emitters in use rather than treating 0.8 GPH as the total coil flow.

Frequently Asked Questions

Is the flow rating 0.8 GPM or GPH?

It is 0.8 gallons per hour per emitter at 30 psi. Flow varies with pressure; total demand depends on the number of emitters operating.

Can the 100-foot coil be one continuous watering run?

No. Rain Bird’s chart lists a 33-foot maximum run for 12-inch emitter spacing. Cut the supplied coil into runs that meet the design limit.

How does this differ from LDQ0806100?

LDQ0812100 has 12-inch emitter spacing and a listed 33-foot maximum run. LDQ0806100 has closer 6-inch spacing and a 19-foot maximum run. Both are supplied as 100-foot coils.

Why Buy from Big Frog Supply?

Choose LDQ0812100 when your layout calls for outlets one foot apart rather than the closer spacing of LDQ0806100. The 12-inch spacing allows the chart’s longer 33-foot run, giving you more reach per section while retaining compact 1/4-inch tubing. Match that spacing to the planting layout and divide the 100-foot coil accordingly.
