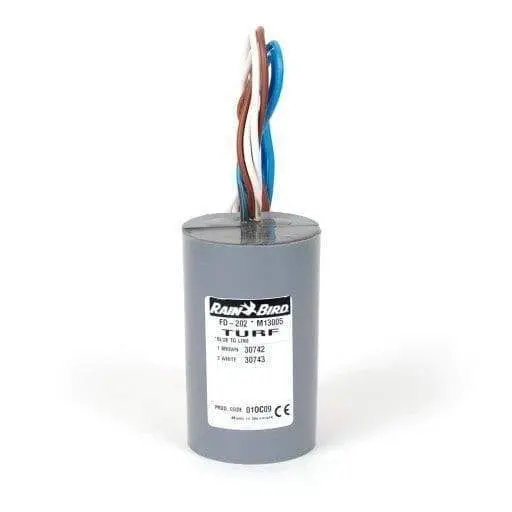

Rain Bird FD202TURF Two-Address Two-Wire Decoder

Rain Bird FD202TURF Two-Address Two-Wire Decoder

Brand: Rain Bird | SKU: FD202TURF

Product Overview

Control two valves independently, or two pairs of valves, with FD202TURF on a compatible Rain Bird SiteControl decoder or ESP-LXD two-wire system. Each of its two addresses can operate up to two compatible solenoids, letting you group valves that need the same watering schedule while retaining separate control between the two groups.

Key Features

• Two independent decoder addresses in one field device.
• Up to two compatible solenoids per address, four total.
• Factory pre-coded addresses for assignment in the controller.
• Waterproof encapsulation for underground use.

Common Uses

• Controlling two nearby valves on separate station schedules.
• Operating two valve pairs, with each pair sharing one address.
• Replacing a matching FD202TURF in an existing two-wire installation.

Technical Specifications

• Model / manufacturer item: FD202TURF / M13005.
• System fit: SiteControl decoder and ESP-LXD.
• Capacity: Two addresses; up to two compatible Rain Bird solenoids per address.
• Current draw: 1 mA idle; 18 mA per active solenoid.
• Lead identification: Blue to cable; white and brown to solenoid circuits.
• Mounting: Valve box recommended; direct burial permitted.
• Operating temperature: 32–122°F (0–50°C).

Dimensions

Length: 3.35 inches (85 mm). Diameter: 1.97 inches (50 mm).

Compatibility & Installation Notes

Verify the controller, solenoid and decoder family before ordering. The ESP-LXD guide lists PGA, PEB/PESB/PESBR, GB, EFB-CP and BPE/BPES commercial valve families, and excludes residential DV, JTV, HV and ASVF series. Gray FD-TURF and black FD decoders must not be mixed.

Follow the wiring diagram for the white and brown solenoid circuits and their corresponding addresses. Record both addresses and locations, assign them in the controller, and test each circuit. Use the specified cable, waterproof splices, grounding and surge protection. Two valves sharing an address run together; allow separate addresses for valves requiring different watering times.

Frequently Asked Questions

Does FD202TURF provide four independent zones?

No. It has two independent decoder addresses, each supporting up to two compatible solenoids. Valves paired on one address operate together; four separately scheduled valves require four addresses.

Can I connect just two valves?

Yes. One compatible solenoid can be connected to each address for independent control of two valves. Each address can also operate a compatible pair when both valves should run together.

Which wires connect to the cable and solenoids?

Blue leads connect to the two-wire cable. White and brown leads serve the solenoid circuits. Follow the FD202 wiring diagram to identify each circuit and its corresponding factory address.

What should I check before ordering a replacement?

Confirm the SiteControl decoder or ESP-LXD system, compatible solenoids and gray FD-TURF family. Record both replacement addresses and assign them to the correct controller stations before testing.

Why Buy from Big Frog Supply?

Choose FD202TURF when the layout calls for two independently controlled valve groups at one decoder location. Its two addresses provide more scheduling flexibility than the single-address FD102TURF, while the two-solenoid allowance on each address supports paired valves. Count the schedules you need as well as the valves: FD202TURF can operate four solenoids, but it provides two independent control groups.
