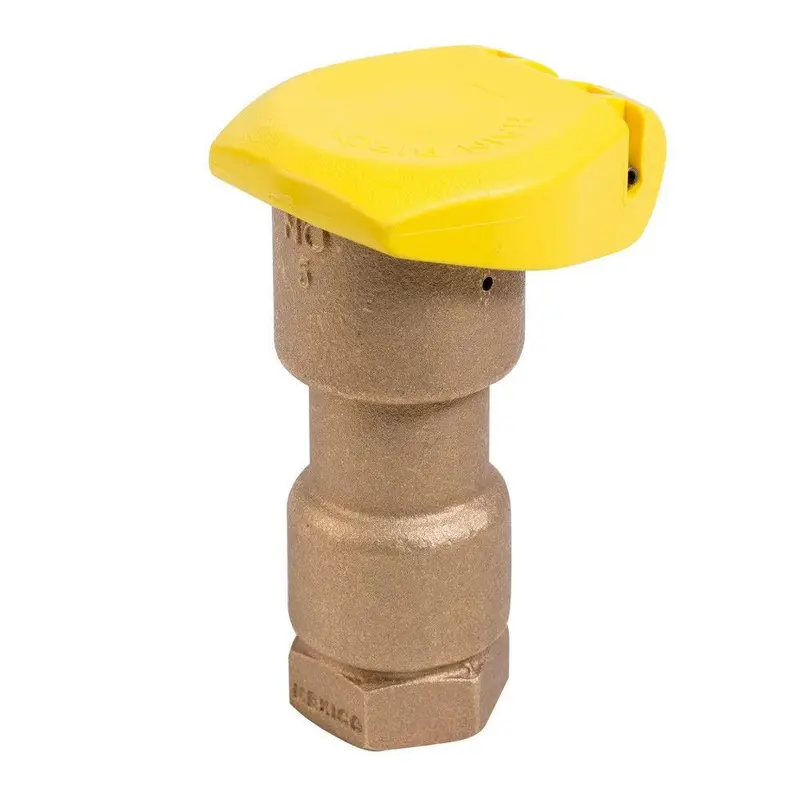

Rain Bird 5RC 1-Inch Quick-Coupling Valve

Rain Bird 5RC 1-Inch Quick-Coupling Valve

Brand: Rain Bird | SKU: 5RC

Product Overview

The Rain Bird 5RC creates a 1-inch NPT water-access point for maintenance hoses and hand watering. Its one-piece brass body and non-locking yellow cover suit installations that need the 5-series operating-key connection with routine access to the valve opening.

Key Features

• One-piece red brass body for the 5-series connection layout.
• Non-locking yellow thermoplastic rubber cover protects the opening.
• Stainless steel spring supports valve closure.
• Matching 55K1-series key connects the valve to suitable outlet equipment.

Common Uses

• Temporary hose connections at landscape and turf maintenance locations.
• Supplemental hand watering from a properly designed irrigation supply.

Technical Specifications

• Model: 5RC; manufacturer part number B12703.
• Nominal inlet: 1-inch female NPT; domestic model.
• Body: one-piece red brass.
• Cover: yellow, non-locking thermoplastic rubber.
• Operating pressure: 5–125 psi.
• Operating key: Rain Bird 55K1 / 55K-1, matched to the outlet connection.
• 5-series pressure-loss examples: 4.1 psi at 30 GPM; 11.0 psi at 50 GPM.

Dimensions

• Overall valve height: 5-1/2 in. (14.0 cm).

Compatibility & Installation Notes

Match the inlet, operating-key series and required hose adapter. The domestic 5RC has NPT threads; 5RC-BSP is a distinct thread option. A garden hose does not screw directly into the valve opening.

Use the manufacturer’s 5-series pressure-loss curve to size the connection for actual demand. The wider family’s 10–125 GPM listing does not mean that every valve size delivers every flow with an acceptable pressure loss.

Isolate and depressurize the supply before installation or service. Provide stable support, accessible cover clearance and the backflow protection required by the system. Keys and hose accessories are separate selections.

Frequently Asked Questions

Which operating key fits the 5RC?

Use the matching Rain Bird 55K1 / 55K-1 operating key with the appropriate outlet threads and hose accessory.

Does the 5RC have a locking cover?

No. Its yellow cover is non-locking. Choose the 5LRC when the installation needs the corresponding yellow locking cover.

Is the 5RC inlet a hose thread?

No. The domestic model has a nominal 1-inch female NPT pipe inlet. The removable operating key provides the outlet connection.

Can I size it using the family’s 125 GPM maximum?

Use the model-specific 5-series pressure-loss table instead. Rain Bird lists 4.1 psi loss at 30 GPM and 11.0 psi at 50 GPM for that series, so available supply pressure matters.

Why Buy from Big Frog Supply?

The 5RC is a practical choice when you need the 55K1-series key connection, a one-piece body and a non-locking yellow cover on a 1-inch NPT supply. Its 5-1/2-inch height is shorter than the 6-inch 44-series body, and the published 5-series pressure-loss points let you compare hydraulic performance before choosing a valve.
