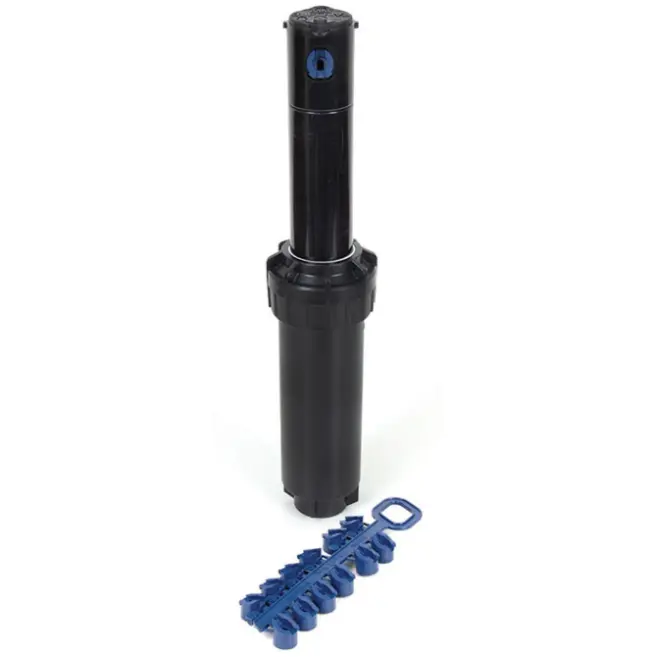

Rain Bird 5004FC 4-Inch Full-Circle Pop-Up Rotor

Rain Bird 5004FC 4-Inch Full-Circle Pop-Up Rotor

Brand: Rain Bird | SKU: 5004FC

Product Overview

Water the open center of a lawn with the Rain Bird 5004FC, a dedicated 360° non-reversing rotor. Its 4-inch pop-up and Rain Curtain nozzle system suit larger turf areas where coverage is needed in every direction. Choose this fixed full-circle model when there is no need to stop or reverse at an adjustable arc boundary.

Key Features

• Dedicated 360° non-reversing full-circle rotation.
• 4-inch pop-up height.
• Rain Curtain nozzles provide standard and low-angle nozzle choices.
• Radius adjustment permits up to 25% reduction with the adjustment screw.
• Wiper seal and retract spring support operation in an in-ground installation.

Common Uses

• Open lawn areas requiring watering around the full perimeter of the head.
• Replacing a fixed full-circle 5000 Series rotor after matching inlet and available clearance.

Technical Specifications

• Model: 5004FC; 5000 Series full-circle rotor.
• Pattern: fixed 360°, non-reversing; not an adjustable part-circle model.
• Inlet: 3/4-inch female NPT, bottom connection.
• Operating pressure: 25–65 psi.
• Series radius: 25–50 feet, depending on nozzle and pressure.
• Series flow range: 0.76–9.63 GPM, depending on nozzle and pressure.
• Riser: plastic.
• Configuration: no Plus flow shutoff, no SAM check valve and no PRS pressure regulator.

Dimensions

• Pop-up height: 4 inches, measured from cover to nozzle.
• Retracted body height: 7-3/8 inches.
• Exposed surface diameter: 1-5/8 inches.

Compatibility & Installation Notes

Use a compatible 3/4-inch male NPT connection and flush the line before final nozzle installation. Select the nozzle for available pressure, required throw and zone flow capacity.

The FC model cannot be changed into a part-circle rotor by arc adjustment. Choose a PC model where a sidewalk, fence or other boundary requires a limited arc.

The radius screw reduces throw; reducing radius does not change this model from full-circle to part-circle operation.

Browse irrigation rotors

Frequently Asked Questions

Can 5004FC be adjusted to a half circle?

No. It is a fixed 360° non-reversing full-circle rotor. Choose a part-circle model for a limited arc.

Does it include Plus flow shutoff or pressure regulation?

No. The 5004FC configuration has no Plus shutoff, SAM check valve or PRS regulator.

Is its throw always 50 feet?

No. The series range is 25–50 feet depending on the installed nozzle and operating pressure. Select the nozzle from the performance chart.
