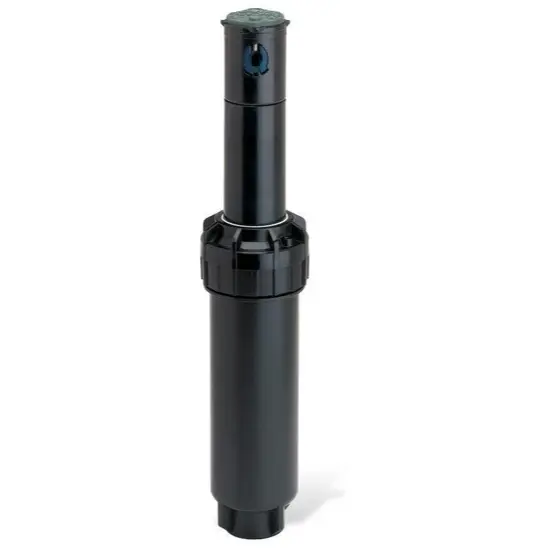

Rain Bird 5004+PCSAMR 4-Inch Adjustable-Arc PRS Rotor

Rain Bird 5004+PCSAMR 4-Inch Adjustable-Arc PRS Rotor

Brand: Rain Bird | SKU: 5004+PCSAMR

Product Overview

Match a adjustable 40–360-degree reversing arc layout with the Rain Bird 5004+PCSAMR. This 4-inch pop-up rotor has a PRS stem that targets 45 psi when the supply is sufficient. Plus flow shut-off lets you stop water at the individual head during maintenance, and the SAM check valve limits low-head drainage on sloped zones.

Key Features

• 4-inch pop-up stroke and 3/4-inch female NPT bottom inlet.
• 40–360-degree adjustable reversing pattern.
• PRS stem targets 45 psi with sufficient supply.
• Plus flow shut-off at the rotor head.
• SAM check valve reduces low-head drainage.

Common Uses

• Part-circle lawn irrigation along edges or corners.
• Selecting a pressure-regulated replacement rotor.

Technical Specifications

• Model / merchant SKU: 5004+PCSAMR; manufacturer alias 5004+PCSR, part Y65650.
• Pop-up stroke: 4 inches.
• Watering pattern: adjustable 40–360-degree reversing arc.
• Inlet: nominal 3/4-inch female NPT bottom connection.
• PRS: in-stem pressure regulation with a 45 psi target.
• Listed rotor operating pressure: 25–65 psi.
• Family watering radius: 25–50 feet, depending on selected nozzle, pressure and adjustment.
• Use the PRS nozzle performance table to select flow and reach; the family range is not a fixed output for every nozzle.
• Plus flow shut-off: included.
• SAM check valve: included; holds back up to 7 feet of elevation change.

Dimensions

• Pop-up stroke: 4 inches, measured from the cover to the nozzle.
• Retracted overall body height: 7-3/8 inches.
• Exposed surface diameter: 1-5/8 inches.

Compatibility & Installation Notes

Match the 3/4-inch male NPT supply connection and allow room for the retracted body. Flush the line before fitting the rotor, then select the nozzle for pressure, flow and head spacing.

PRS reduces excessive pressure; it cannot raise a low-pressure supply to 45 psi. Check pressure with the zone operating and allow for losses in the supply piping.

Set the fixed left edge first, then use the arc adjustment slot to set the right edge. Turn clockwise to increase the arc and counterclockwise to decrease it, following the 5000 instructions.

For Plus flow shut-off, insert a flat-blade screwdriver into the flow shut-off slot and turn clockwise 180 degrees to stop flow; turn counterclockwise 180 degrees to resume. The shut-off slot is separate from the arc adjustment.

SAM reduces low-head drainage after the zone shuts off. It is separate from PRS pressure regulation and is not a backflow-prevention device.

Over the years, a select few products have risen above the rest with their unparalleled performance. We’re thrilled to share these gems with you. Whenever you spot the “From the Frog” badge, rest assured it’s more than just a mark of quality—it’s a symbol of our dedication and careful consideration in choosing the best for you.

Frequently Asked Questions

Can I adjust this rotor to a partial circle?

Yes. Its PC mechanism adjusts from 40 to 360 degrees with reversing rotation.

Does PRS always produce 45 psi?

PRS regulates toward 45 psi when inlet pressure and flow conditions are sufficient. It cannot boost an inadequate supply.

Does it have Plus flow shut-off?

Yes. The Plus feature allows water to be stopped at this head while the rest of the zone operates.

Is SAM included?

Yes. Its SAM check valve limits low-head drainage across up to 7 feet of elevation change.

Why Buy from Big Frog Supply?

Choose 5004+PCSAMR when a lawn edge or corner needs an adjustable 40–360-degree pattern plus pressure regulation and slope drainage control. The 45 psi PRS target and SAM check valve address different system needs, while Plus shut-off helps service one head. Its 4-inch stroke and 3/4-inch female NPT inlet identify the replacement fit.
