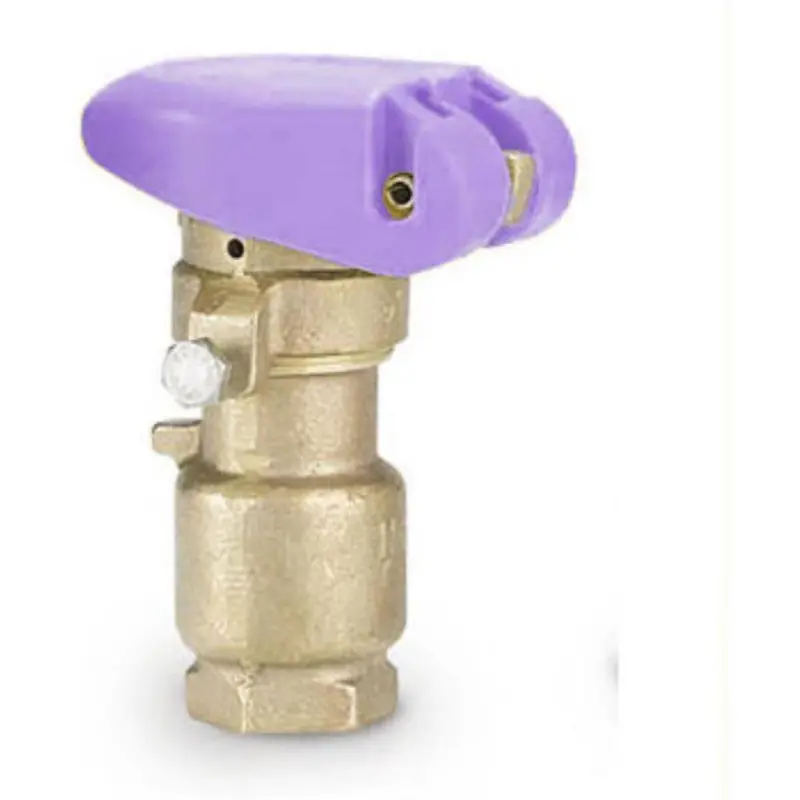

Rain Bird 33DNP / 44-NP Non-Potable Quick-Coupling Valves

Rain Bird 33DNP / 44-NP Non-Potable Quick-Coupling Valves

Brand: Rain Bird | SKUs: 33DNP, 44-NP

Product Overview

Add a designated non-potable water-access point with a Rain Bird 33DNP or 44-NP quick-coupling valve. Choose 33DNP for a 3/4-inch NPT inlet or 44-NP for a 1-inch NPT inlet. Both have a two-piece red-brass body and purple locking cover; the correctly matched valve key opens the water passage, while a separate 2049 key unlocks the cover.

Key Features

• Purple locking cover identifies a non-potable water point.
• Cover carries Do Not Drink warnings in English and Spanish.
• Two-piece body permits servicing of the valve assembly.
• Red-brass body and corrosion-resistant stainless steel spring.

Common Uses

• Manual water access on non-potable landscape irrigation systems.
• Service points where a purple locking cover is specified.

Technical Specifications

• 33DNP = manufacturer 33-DNP: 3/4-inch female NPT inlet, two-piece body and purple locking cover.
• 44-NP: 1-inch female NPT inlet, two-piece body and purple locking cover.
• Operating pressure: 5–125 psi.
• Valve keys: 33DK for 33DNP; 44K for standard 44-NP.
• Cover key: model 2049; different from the water-access valve key.
• Manufacturer pressure-loss examples: 33DNP at 15 GPM = 4.3 psi and at 20 GPM = 7.6 psi; 44-NP at 15 GPM = 2.2 psi and at 20 GPM = 4.4 psi.

Dimensions

• 33DNP overall height: 4-3/8 inches.
• 44-NP overall height: 6 inches.

Compatibility & Installation Notes

Match the inlet thread, valve-box clearance and compatible valve key before ordering. Select flow using the model-specific pressure-loss chart and the pressure available to the hose or other connected equipment. A family flow range does not establish equal capacity for both sizes.

The standard 44-NP uses a 44K key; do not substitute an ACME-model key based only on the 1-inch inlet size. Select valve keys, the 2049 cover key and hose accessories separately.

Use appropriate piping support and service access. The purple cover identifies the water source; it does not treat water or provide backflow prevention. Keep non-potable connections separate from drinking-water uses.

Frequently Asked Questions

How do the two options differ?

33DNP has a 3/4-inch NPT inlet and a 4-3/8-inch height. 44-NP has a 1-inch NPT inlet and a 6-inch height. Both have two-piece bodies and purple locking covers.

Does the 2049 key turn on the water?

No. The 2049 key unlocks the cover. Use a matching water-access valve key: 33DK for 33DNP or 44K for standard 44-NP.

Does a purple cover make water safe to drink?

No. It identifies a non-potable water point. Both covers carry Do Not Drink warnings in English and Spanish.
