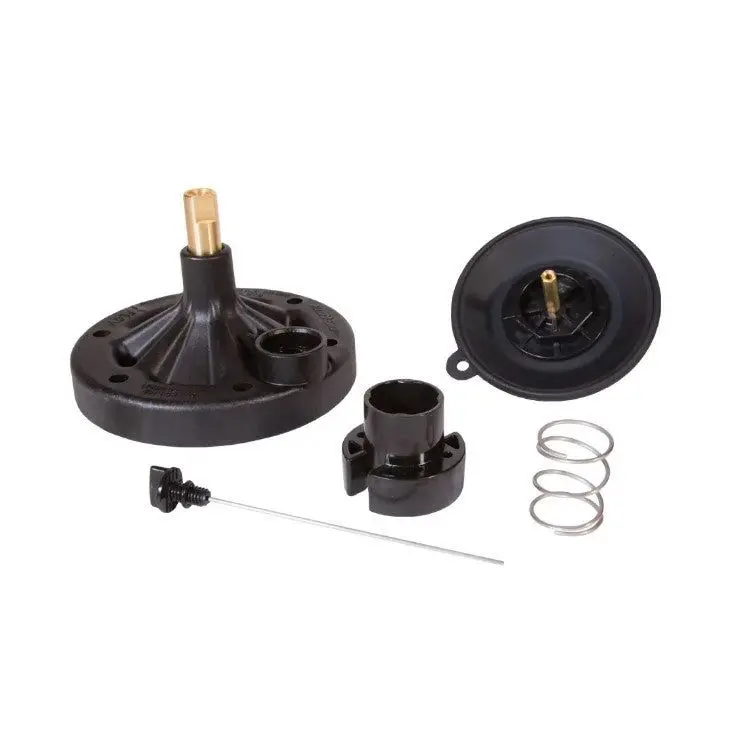

Rain Bird 20PEBDIBO 2-Inch 200PEB Diaphragm and Bonnet Kit

Rain Bird 20PEBDIBO 2-Inch 200PEB Diaphragm and Bonnet Kit

Brand: Rain Bird | SKU: 20PEBDIBO

Product Overview

Renew the upper components of a compatible Rain Bird 200PEB valve with the 20PEBDIBO diaphragm-and-bonnet kit, manufacturer part 236483. Rain Bird specifies replacing these two components together when either needs service.

Key Features

• Includes the replacement diaphragm assembly and matching bonnet.
• For older- and newer-style 200PEB valves.
• Both components are replaced together for this repair.

Common Uses

• Servicing a 200PEB that needs a diaphragm or bonnet replacement.

Technical Specifications

• Model: 20PEBDIBO
• Manufacturer part: 236483
• Compatible valve: Rain Bird 200PEB
• Nominal valve size: 2 inches
• Repair components: diaphragm assembly and bonnet assembly

Compatibility & Installation Notes

Identify the 200PEB valve before ordering; the kit is not a universal replacement for every 2-inch valve. Shut off water and relieve pressure before disassembly. Fit the supplied diaphragm and bonnet together as Rain Bird directs. Inspect the remaining valve components before returning the zone to service.

Frequently Asked Questions

Must I replace both components?

Yes. Rain Bird specifies replacing the bonnet and diaphragm together when servicing either with 20PEBDIBO.

Does it fit older 200PEB valves?

Rain Bird lists compatibility with both older- and newer-style 200PEB valves.

Is 236483 the same kit reference?

Yes. Rain Bird identifies model 20PEBDIBO with manufacturer part number 236483.

Why Buy from Big Frog Supply?

Choose 20PEBDIBO when a 2-inch 200PEB needs upper-component service. The paired diaphragm and bonnet address Rain Bird’s requirement to replace both together, and the 236483 reference helps distinguish the kit from a diaphragm-only part or a PESB repair assembly.
