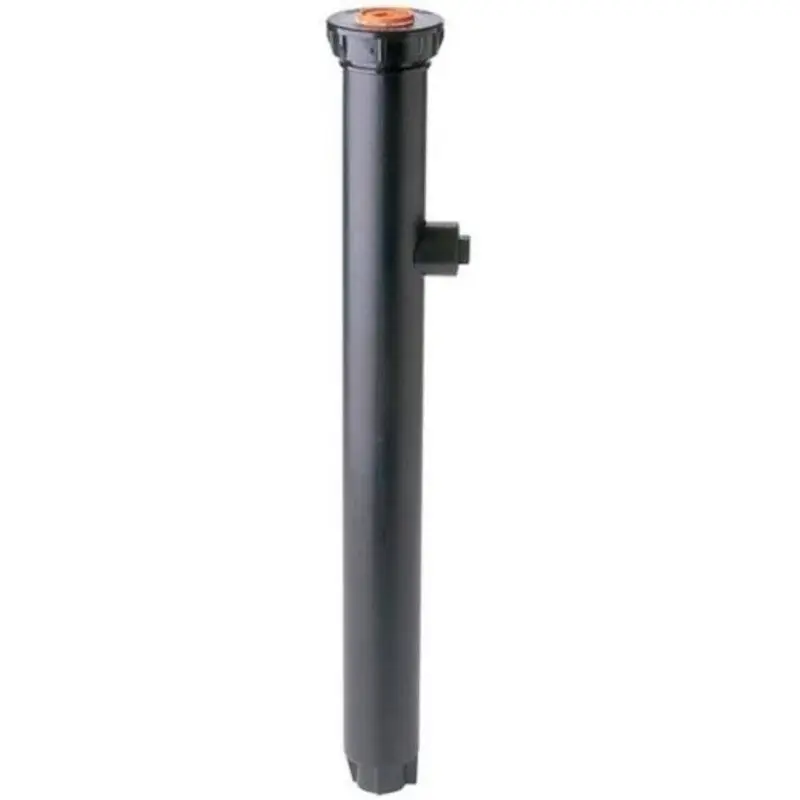

Rain Bird 1812 12-Inch Pop-Up Spray Bodies — PRS, SAM or SAM-PRS

Rain Bird 1812 12-Inch Pop-Up Spray Bodies — PRS, SAM or SAM-PRS

Brand: Rain Bird | SKUs: 1812PRS, 1812SAM, 1812SAMPRS

Product Overview

Choose a 12-inch pop-up body that clears taller planting areas, then match its internal feature to the problem you need to solve. Select 1812PRS for pressure regulation, 1812SAM for low-head drainage control, or 1812SAMPRS for both. These are body-only choices, so you can select a separate nozzle for the required radius and pattern.

Key Features

• 12-inch pop-up height helps bring the nozzle above surrounding planting.
• PRS versions reduce higher inlet pressure to a nominal 30 psi at the nozzle.
• SAM versions help hold water in lateral piping at elevation changes up to 14 feet.
• Wiper seal, stainless steel retract spring and ratcheting stem support retraction and nozzle alignment.

Common Uses

• Shrub beds and landscape areas requiring a taller pop-up.
• Pressure-regulated spray zones with PRS models.
• Sloping zones where a SAM model is needed to limit low-head drainage.

Technical Specifications

• Models available: 1812PRS, 1812SAM and 1812SAMPRS; spray bodies supplied without watering nozzles.
• Inlet connection: 1/2-inch female NPT.
• 1812PRS: nominal 30 psi in-stem regulation; 15–70 psi operating range; side or bottom inlet.
• 1812SAM: SAM check valve holds up to 14 feet of elevation head; 25–70 psi operating range; bottom inlet only; no pressure regulator.
• 1812SAMPRS: combines nominal 30 psi regulation with SAM check valve; 25–70 psi operating range; bottom inlet only.
• Flow rate, radius and pattern depend on the nozzle selected; nozzles are purchased separately.

Dimensions

• Pop-up height: 12 inches.
• Body height: 16 inches.
• Exposed surface diameter: 2 1/4 inches.

Compatibility & Installation Notes

Select by model in the table; SAM and PRS are different features. A SAM-only body does not regulate pressure, and a PRS-only body does not include the SAM check valve.

Use the bottom inlet on SAM and SAM-PRS models. The 1812PRS permits side or bottom inlet installation; Rain Bird does not recommend side-inlet installation in freezing climates. Close the unused inlet when applicable.

Choose a compatible Rain Bird nozzle separately, flush the body before installing it and check coverage during operation. A pressure regulator reduces excess pressure; it cannot increase inadequate supply pressure.

Frequently Asked Questions

Which 12-inch model combines pressure regulation and a check valve?

1812SAMPRS combines nominal 30 psi pressure regulation with the SAM check valve. 1812PRS provides regulation only, while 1812SAM provides the check valve only.

Does the 12-inch measurement mean total body height?

No. Twelve inches is the pop-up height. The body height is 16 inches.

Can I use a side inlet on 1812SAM or 1812SAMPRS?

No. Those SAM models use the bottom inlet only. The 1812PRS offers side or bottom inlet installation.

Is a spray nozzle included?

No. Choose a compatible nozzle separately for the radius and watering pattern your layout needs.
