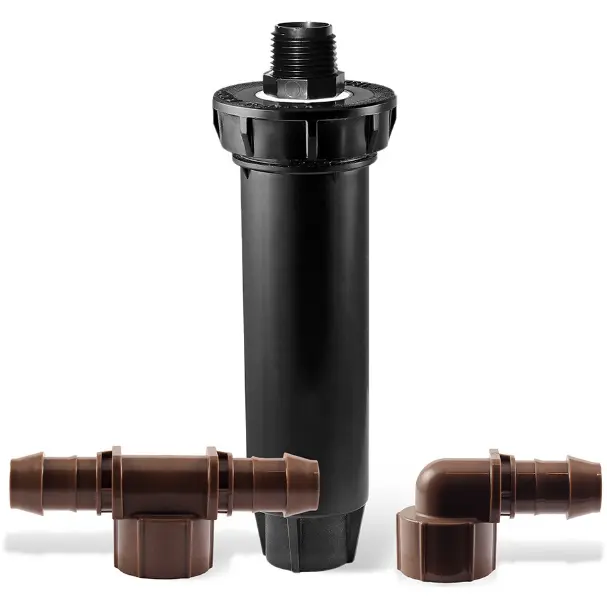

Rain Bird 1800RETRO Spray-to-Drip Retrofit Kit

Rain Bird 1800RETRO Spray-to-Drip Retrofit Kit

Brand: Rain Bird | SKU: 1800RETRO

Product Overview

Turn a compatible Rain Bird 1800 spray location into a filtered, pressure-regulated drip connection with the 1800RETRO. The kit combines a 30 psi regulator and 200-mesh filter with a 1/2-inch male-threaded swivel outlet. Use the included elbow or tee fitting to connect drip tubing, or transfer the internal assembly into an existing 1804, 1806 or 1812 body.

Key Features

• Built-in 30 psi regulator and accessible 200-mesh filter.
• Includes one low-profile 1/2-inch FPT × barb elbow and one 1/2-inch FPT × barb tee.
• Internal assembly supports reuse of compatible installed spray bodies.
• Can be installed above or below grade, with access retained for servicing.

Common Uses

• Converting a planting-bed spray zone to drip irrigation.
• Providing a filtered drip supply at an existing 1800 spray location.

Technical Specifications

• Model: 1800-RETRO; merchant SKU: 1800RETRO.
• Inlet: 1/2-inch female threaded; outlet: 1/2-inch male-threaded swivel.
• Inlet operating range: 15–70 psi.
• Regulated outlet target: 30 psi; adequate supply pressure is required.
• Supported flow: 0.5–6 GPM.
• Filter: accessible 200 mesh (75 micron); replacement screen model RBY-200SSMX.
• Includes retrofit body/assembly, filter, regulator, elbow and tee fittings; drip tubing, emitters and caps for other heads are separate.

Dimensions

• Complete retrofit body height: 7 inches.
• Cap width: 2.25 inches. Body width: 1.5 inches.
• Dimensions describe the supplied retrofit body; installed height varies when the internal assembly is transferred to a taller existing body.

Compatibility & Installation Notes

Shut off the zone before opening a spray body. Remove the existing cap and internal assembly, then fit the retrofit internals and tighten the cap. For an 1806 or 1812 conversion, Rain Bird instructs leaving the existing spring in the body.

Connect tubing with the elbow or tee and cap unused Rain Bird 1800 spray bodies with separately purchased 1800XC caps as the conversion requires. Provide access to clean the filter and verify the total drip demand stays within 0.5–6 GPM.

A pressure regulator reduces pressure; it does not boost a low-pressure supply to 30 psi. Select tubing and emitters for the resulting operating conditions.

Frequently Asked Questions

Which existing bodies accept the retrofit assembly?

Rain Bird identifies the 1804, 1806 and 1812 bodies. For 1806 and 1812 conversions, leave the existing spring in the body as directed in the conversion guide.

What filtration and pressure regulation are included?

The kit includes an accessible 200-mesh, 75-micron filter and a regulator with a 30 psi outlet target. Adequate supply pressure is required.

Are drip tubing and emitters included?

No. The kit includes the retrofit body/assembly, filter, regulator and elbow/tee fittings. Choose tubing, emitters and any caps for unused heads separately.

What flow range should the converted connection serve?

The published operating flow range is 0.5–6 GPM. Check the combined demand of the connected drip outlets against that range.
