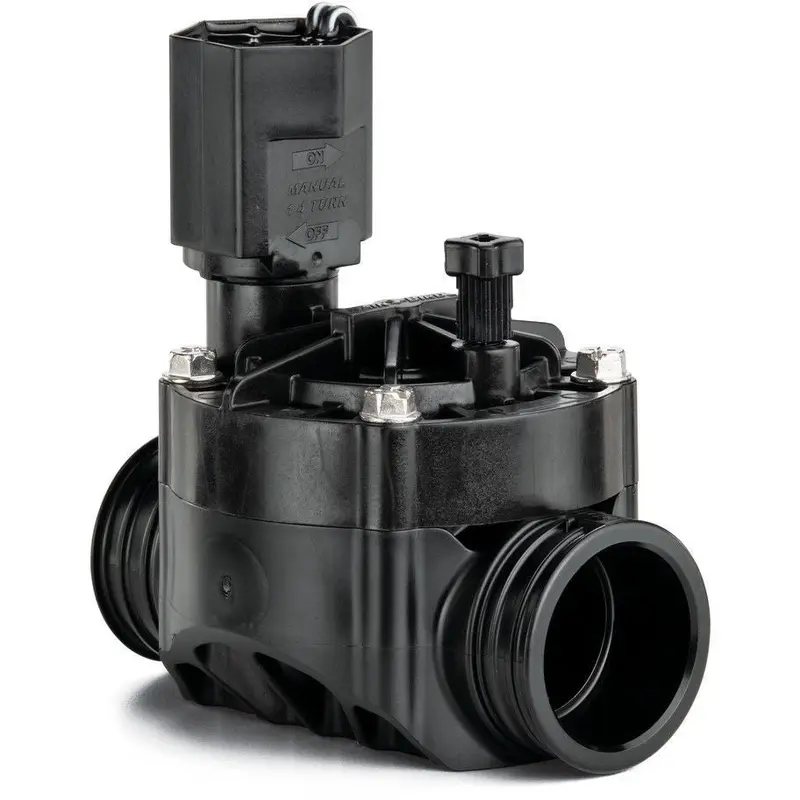

Rain Bird 100HVFSS 1-Inch Slip Flow-Control Valve

Rain Bird 100HVFSS 1-Inch Slip Flow-Control Valve

Brand: Rain Bird | SKU: 100HVFSS

Product Overview

Use the Rain Bird 100HVFSS for a PVC sprinkler zone that needs 1-inch solvent-weld connections and manual flow adjustment at the valve. The slip sockets eliminate threaded adapters at the valve ports, while the HVF stem lets you trim zone flow during setup. Check the 5.62-inch overall height when planning valve-box clearance.

Key Features

• Connection layout: 1-inch slip x slip.
• Pressure-assisted flow adjustment.
• Eccentric diaphragm supports smooth closing.
• Four-screw bonnet access and two manual-bleed options.

Common Uses

• Controlling a residential sprinkler zone.
• Replacing a matching slip-connected flow-control valve.

Technical Specifications

• Model / factory part: 100HVFSS / H02010.
• Connections: 1-inch slip x slip; inline globe configuration.
• Body: PVC slip-connection model.
• Operation: normally closed, reverse-flow diaphragm valve; 24 VAC, 50/60 Hz solenoid.
• Flow control: pressure-assisted adjustment stem.
• Operating pressure: 15–150 psi.
• Operating flow range: 0.2–30 GPM.
• Water temperature: up to 110°F; ambient temperature: up to 125°F.
• Electrical ratings at 60 Hz: maximum inrush 0.290 A; holding 0.091 A; coil resistance 70–85 ohms at 40–110°F.
• Buna-N diaphragm with 90-mesh (200-micron) pilot filter and captured stainless steel spring.
• Four captured bonnet screws; internal and external manual bleed.

Dimensions

• Overall height: 5.62 inches (flow-control model).
• Overall length: 4.4 inches.
• Overall width: 3.1 inches.

Compatibility & Installation Notes

Match both connection styles and the direction arrow before replacing a valve. Flush the supply line before assembly and keep the solenoid on the downstream side.

Solvent-weld the slip ports to suitable PVC pipe using the installation instructions and cement manufacturer’s cure time. Keep excess cement out of the valve.

Use waterproof irrigation wire connectors and a compatible 24 VAC controller. Size wire for the run and electrical load.

Install a 200-mesh filter upstream for flow below 3 GPM or any landscape drip application. Provide separate pressure regulation and backflow protection as the system and local requirements demand.

Use the solenoid for internal manual bleed and the external bleed screw for flushing. The HVF stem adjusts flow; it does not automatically maintain a set downstream pressure.

*One Solenoid Handle Per Order

Frequently Asked Questions

Are the valve ports threaded?

No. 100HVFSS has nominal 1-inch slip sockets for solvent-weld pipe connections.

Does it include flow control?

Yes. The HVF stem provides manual flow adjustment; it is not an automatic pressure regulator.

What controller power does it need?

The supplied solenoid requires 24 VAC, 50/60 Hz. Use waterproof wire connections and check the controller and wire sizing.

Can it operate a drip zone?

Yes, within its operating range. Rain Bird requires a 200-mesh upstream filter for any landscape drip application; provide pressure regulation appropriate to the emitters.

Why Buy from Big Frog Supply?

Choose 100HVFSS for its PVC slip sockets and pressure-assisted flow-control stem when a solvent-weld zone needs adjustment at the valve. The 5.62-inch flow-control height and 4.4-inch body length help you check box clearance before cutting pipe. If the existing connections are threaded or barbed, select the matching connection model instead.
