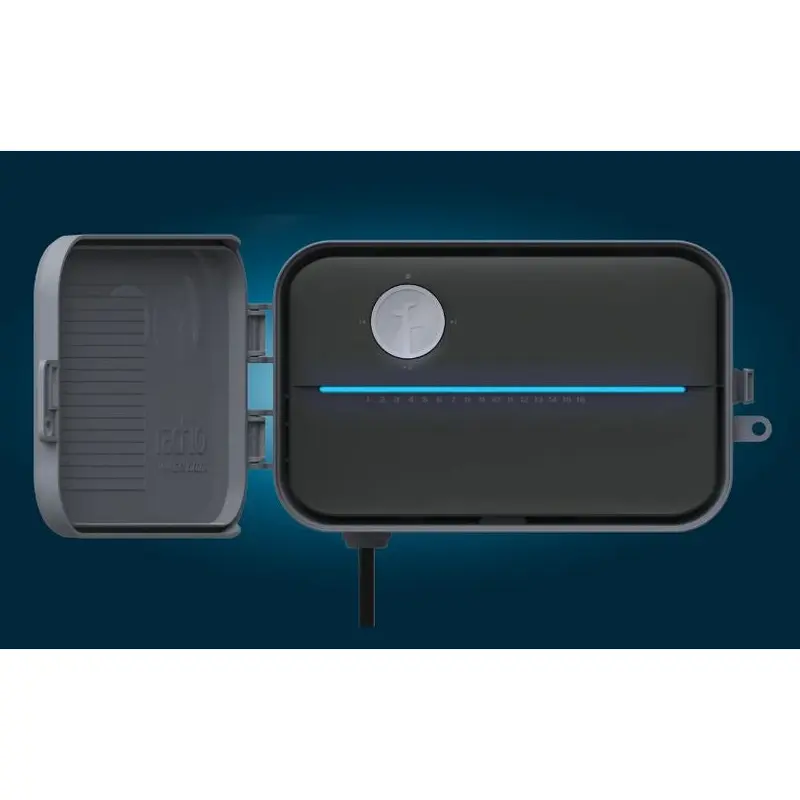

Rachio 16ZULWC-PS R3 Pro Series 16-Zone Controller with Outdoor Enclosure

Rachio 16ZULWC-PS R3 Pro Series 16-Zone Controller with Outdoor Enclosure

Brand: Rachio | SKU: 16ZULWC-PS

Product Overview

Manage up to 16 irrigation zones from the Rachio app with a Pro controller packaged for an outdoor mounting location. 16ZULWC-PS includes a weatherproof enclosure and a 6-foot electrical pigtail, so you can choose the outdoor package without adding a separate cabinet. Screw terminals support the Pro wiring layout, while Wi-Fi connects the controller to app scheduling and weather-based watering features.

Key Features

• Controls up to 16 separately wired irrigation zones.
• Supports 2.4 GHz and 5 GHz Wi-Fi networks.
• Weatherproof enclosure and 6-foot pigtail included.
• One master-valve/pump-relay connection and two sensor ports.
• App scheduling, shared access and faulty-wiring alerts.

Common Uses

• Replacing a 16-zone or smaller residential irrigation controller.
• Mounting an app-connected controller at an outdoor irrigation location.
• Separating lawn and planting-bed watering schedules.

Technical Specifications

• Model: 16ZULWC-PS
• Zone capacity: 16
• Series: Rachio 3 Pro
• Wi-Fi: 2.4/5 GHz
• Valve compatibility: 24V AC solenoids
• Power: supplied AC adapter; 120V AC, 60Hz input and 24V AC output
• Control connections: one master valve/pump relay; two sensor ports
• Sensors: compatible normally closed rain/soil sensors and supported wired flow sensors
• Package: controller, outdoor enclosure and 6-foot pigtail
• Warranty: up to four years for qualifying Pro-sold and Pro-installed systems, subject to Rachio terms

Dimensions

Controller body: 9.1 × 5.5 × 1.4 inches. These dimensions describe the controller only, not the assembled outdoor cabinet; allow additional mounting space for the enclosure, conduit and cable entry.

Compatibility & Installation Notes

Check Wi-Fi reception at the mounting location and record existing zone wiring before replacing a controller. Use the supplied AC adapter with compatible 24V AC irrigation valves; DC transformers are not supported. Install and close the outdoor enclosure according to Rachio’s instructions. Have a qualified installer handle line-voltage connections. A supported flow sensor is required for flow measurements; electrical wiring alerts alone do not measure water flow. Rachio’s four-year Pro warranty requires a qualifying sale and installation by a Rachio Pro.

Frequently Asked Questions

How many zones does 16ZULWC-PS control?

16ZULWC-PS controls up to 16 irrigation zones and has a separate master-valve/pump-relay connection.

Is the outdoor enclosure included?

Yes. 16ZULWC-PS is the Pro package with a weatherproof outdoor enclosure and a 6-foot pigtail.

Which Wi-Fi bands does it support?

The controller supports both 2.4 GHz and 5 GHz Wi-Fi. Check signal strength at the installation location before mounting.

Does the controller measure flow without a sensor?

No. Water-flow measurements require a compatible flow sensor. Faulty-wiring alerts monitor an electrical issue and do not replace a flow sensor.

Why Buy from Big Frog Supply?

Choose 16ZULWC-PS for a landscape with up to sixteen valve circuits that also needs an outdoor controller enclosure. The larger zone capacity accommodates separate lawn and planting-bed schedules, while the supplied weatherproof cabinet and 6-foot pigtail simplify selecting the correct outdoor package. Its screw terminals distinguish the Pro hardware from easy-press consumer models.
