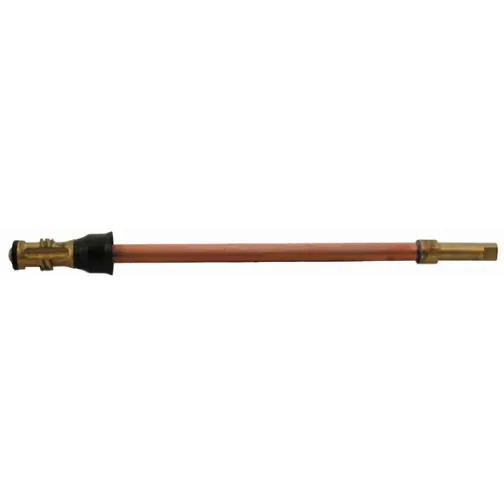

Prier P-231-05CC Close-Coupled F-Style Stem for pre-Diamond P-164/P-264

Prier P-231-05CC Close-Coupled F-Style Stem for pre-Diamond P-164/P-264

Brand: Prier | SKU: P-231-05CC

Product Overview

Repair a compatible pre-Diamond P-164/P-264 hydrant with P-231-05CC, a close-coupled f replacement stem. Prier lists 4 7/16-inch stem overall length. Match the original stem and generation before ordering.

Key Features

• pre-Diamond P-164/P-264 repair application.
• F stem; 2010–April 2013.
• 4 7/16-inch overall stem length.

Common Uses

Replacing a worn or damaged stem in a matching pre-Diamond P-164/P-264 hydrant.

Technical Specifications

• Model: P-231-05CC
• Fit: pre-Diamond P-164/P-264
• Generation: 2010–April 2013
• Stem style: F
• Hydrant designation: CC (close coupled)
• Stem overall length: 4 7/16 inches

Dimensions

Hydrant designation: CC (close coupled)
Stem overall length: 4 7/16 inches
Measure the removed stem end to end and compare the generation-specific diagram.

Compatibility & Installation Notes

Shut off the water before removing the stem. Match hydrant series, generation, stem-end shape and overall length. F-style stems are distinct from the H-style Diamond replacements introduced in April 2013. The nominal hydrant designation and stem overall length are different measurements. Test shutoff and drainage after service.

Frequently Asked Questions

Which hydrant does it fit?

P-231-05CC is listed for close-coupled pre-Diamond P-164/P-264 hydrants of the F design.

Is the nominal size the stem overall length?

No. CC identifies the close-coupled hydrant; the stem overall length is 4 7/16 inches.

Can I choose by length alone?

No. Match the hydrant series, stem generation and end details as well as overall length.

Why Buy from Big Frog Supply?

Choose P-231-05CC when the hydrant is the pre-Diamond P-164/P-264 F design and uses a close-coupled stem measuring 4 7/16 inches overall. These fit details distinguish it from neighboring sizes and other stem generations.
