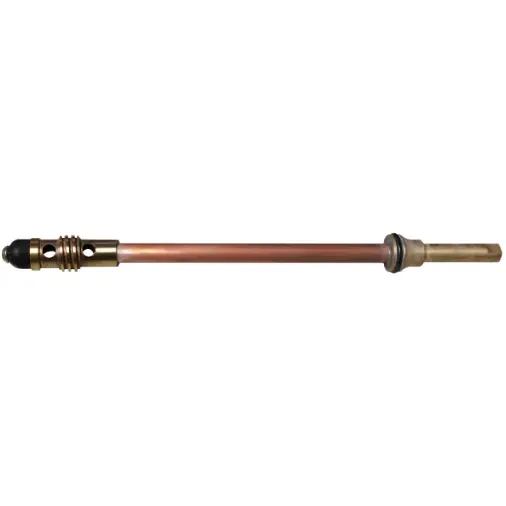

Prier P-231-03CC Close-Coupled Original Stem for old-style C-434/C-534

Prier P-231-03CC Close-Coupled Original Stem for old-style C-434/C-534

Brand: Prier | SKU: P-231-03CC

Product Overview

Repair a compatible old-style C-434/C-534 hydrant with P-231-03CC, a close-coupled original replacement stem. Prier lists 4 9/16-inch stem overall length. Match the original stem and generation before ordering.

Key Features

• old-style C-434/C-534 repair application.
• Original stem; Original design identified in the retired diagram as manufactured until 2007.
• 4 9/16-inch overall stem length.

Common Uses

Replacing a worn or damaged stem in a matching old-style C-434/C-534 hydrant.

Technical Specifications

• Model: P-231-03CC
• Fit: old-style C-434/C-534
• Generation: Original design identified in the retired diagram as manufactured until 2007
• Stem style: Original
• Hydrant designation: CC (close coupled)
• Stem overall length: 4 9/16 inches

Dimensions

Hydrant designation: CC (close coupled)
Stem overall length: 4 9/16 inches
Measure the removed stem end to end and compare the generation-specific diagram.

Compatibility & Installation Notes

Shut off the water before removing the stem. Match hydrant series, generation, stem-end shape and overall length. Compare the drain seal: converting an old U-cup design to an O-ring requires the complete compatible stem. The nominal hydrant designation and stem overall length are different measurements. Test shutoff and drainage after service.

Frequently Asked Questions

Which hydrant does it fit?

P-231-03CC is listed for close-coupled old-style C-434/C-534 hydrants of the Original design.

Is the nominal size the stem overall length?

No. CC identifies the close-coupled hydrant; the stem overall length is 4 9/16 inches.

Can I choose by length alone?

No. Match the hydrant series, stem generation and end details as well as overall length.
