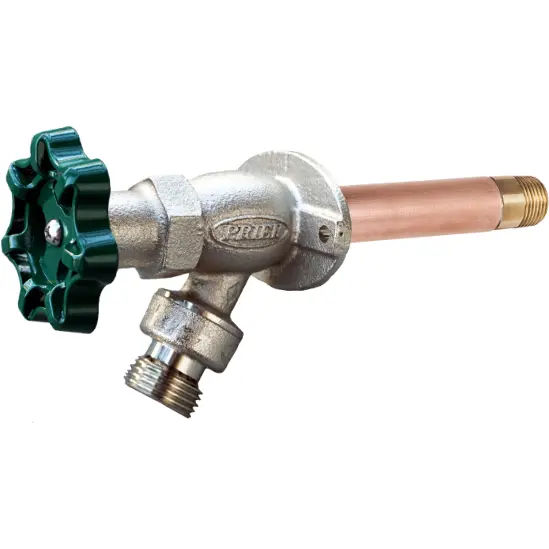

Prier P-154DCC-LF Close-Coupled Lead-Free Wall Hydrant, 1/2-Inch Threaded/Sweat

Prier P-154DCC-LF Close-Coupled Lead-Free Wall Hydrant, 1/2-Inch Threaded/Sweat

Brand: Prier | SKU: P-154DCC-LF

Product Overview

Use P-154DCC-LF for a compact hose connection with a 1/2-inch MPT x 1/2-inch SWT inlet. The close-coupled design needs a suitable protected supply location; do not assume it provides the reach of a numbered-length hydrant. The P-154 includes a hose-threaded anti-siphon vacuum breaker and backflow check.

Key Features

• Close-coupled layout.
• 1/2-inch MPT x 1/2-inch SWT inlet.
• Lead-free brass body and seat with satin-nickel finish.
• Handle operation and hose-threaded vacuum breaker.

Common Uses

Outdoor irrigation, watering and maintenance hose connections.

Technical Specifications

• Model: P-154DCC-LF
• Length designation: CC (close coupled); no numbered insertion length specified
• Inlet: 1/2-inch MPT x 1/2-inch SWT
• Operation: Handle
• Body/seat: Lead-free brass
• Finish: Satin nickel
• Lead-free listing: NSF 372
• Maximum pressure: 125 PSI
• Maximum temperature: 140 F

Dimensions

Length designation: CC (close coupled); no numbered insertion length specified
Inlet: 1/2-inch MPT x 1/2-inch SWT
Manufacturer IOM D-style wall opening: 1 inch
Insertion designation is not complete assembly overall length.

Compatibility & Installation Notes

Locate the shutoff inside a heated area, orient the spout downward and provide the required drainage pitch. Use the threaded or sweat connection appropriate to the supply; keep the valve fully open during soldering to protect the seat. Remove the hose during freezing weather. PRIER limits continuous pressure exposure to 12 hours. Follow the manufacturer instructions and test for leaks before final fastening.

Frequently Asked Questions

What inlet does it use?

P-154DCC-LF uses a 1/2-inch MPT x 1/2-inch SWT inlet.

What does CC mean?

CC means close coupled. Check the compact layout and heated supply location before selecting it.

Can the hose remain attached in freezing weather?

PRIER instructs removing the hose during freezing temperatures to allow drainage.

Why Buy from Big Frog Supply?

Choose P-154DCC-LF when a close-coupled layout and 1/2-inch MPT x 1/2-inch SWT connection match the installation. Its lead-free brass construction and hose-threaded anti-siphon protection suit a compact outdoor watering connection, provided the supply and drainage meet installation requirements.
