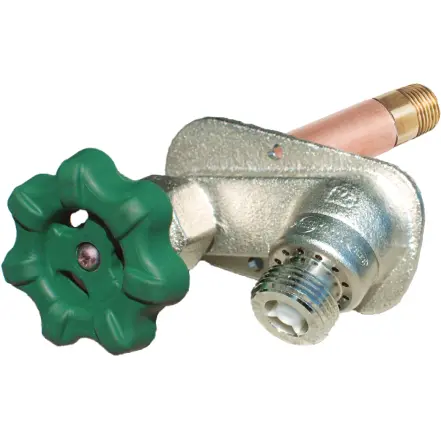

Prier C-434YCC Close-Coupled Self-Draining Wall Hydrant, 1/2-Inch Press-Fit

Prier C-434YCC Close-Coupled Self-Draining Wall Hydrant, 1/2-Inch Press-Fit

Brand: Prier | SKU: C-434YCC

Product Overview

Use C-434YCC where the installation calls for the C-434 close-coupled design and a 1/2-inch press-fit supply connection. The self-draining hydrant includes an anti-siphon vacuum breaker and double check valves. Confirm the compact reach suits the wall and climate before ordering.

Key Features

• CC close-coupled length designation.
• 1/2-inch press-fit inlet.
• Hose-attached drainage after shutoff when correctly installed.
• Anti-siphon vacuum breaker and double check.

Common Uses

Outdoor hose access in an installation that suits a compact close-coupled hydrant.

Technical Specifications

• Model: C-434YCC
• Length designation: CC close coupled
• Inlet: 1/2-inch press-fit
• Operation: Soft-grip handle
• Body: Solid brass, satin nickel plated
• Maximum pressure: 125 PSI
• Maximum temperature: 140 F

Dimensions

Length designation: CC close coupled
Inlet: 1/2-inch press-fit
No standard inch insertion length is assigned to CC here; check the manufacturer drawing and actual installation.

Compatibility & Installation Notes

Install horizontally with proper drainage and the spout downward. A close-coupled body must not be assumed to place the shutoff inside a heated space on a freezing installation. Check wall depth and supply position and use compatible press tooling. Do not substitute CC for a longer model solely because the inlet matches.

Frequently Asked Questions

What does CC mean?

CC means close coupled. It is a compact length designation rather than one of the standard numbered insertion lengths.

Does self-draining make every installation freeze protected?

No. Correct drainage and a protected shutoff location remain necessary. Confirm the compact body is suitable for the installation.

What inlet does it use?

C-434YCC uses a 1/2-inch press-fit inlet.

Why Buy from Big Frog Supply?

Select C-434YCC for its close-coupled reach and 1/2-inch press-fit connection. Compare the compact layout with the wall and protected supply location before choosing it instead of a numbered insertion length.
