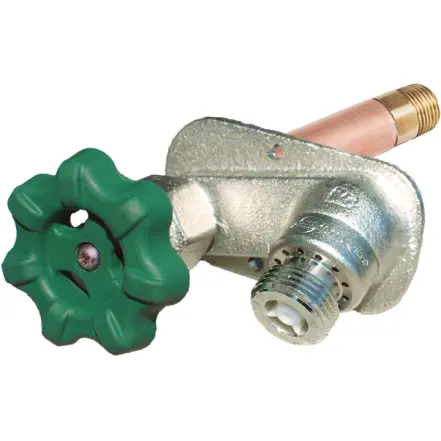

Prier C-434Y18 18-Inch Self-Draining Wall Hydrant, 1/2-Inch Press-Fit

Prier C-434Y18 18-Inch Self-Draining Wall Hydrant, 1/2-Inch Press-Fit

Brand: Prier | SKU: C-434Y18

Product Overview

The Prier C-434Y18 combines a 18-inch insertion and 1/2-inch press-fit inlet with C-434’s self-draining design. It provides outdoor hose access and drains after shutoff even with a closed-end hose attached. Match the reach to the wall and supply position so the shutoff remains inside a heated area.

Key Features

• 18-inch nominal insertion with a 1/2-inch press-fit inlet.
• Self-draining design works after shutoff with a hose attached.
• Anti-siphon vacuum breaker and double check valves.
• Solid brass body with satin nickel plating and soft-grip handle.

Common Uses

Outdoor watering and maintenance hose connections where the supply uses compatible press-fit plumbing and the installed valve can drain properly.

Technical Specifications

• Model: C-434Y18
• Series: C-434
• Nominal insertion: 18 inches
• Inlet: 1/2-inch press-fit (Y style)
• Operation: Soft-grip handle
• Body: Solid brass, satin nickel plated
• Protection: Anti-siphon vacuum breaker and double check
• Maximum pressure: 125 PSI
• Maximum temperature: 140 F

Dimensions

Nominal insertion: 18 inches
Inlet: 1/2-inch press-fit
Insertion length is not complete assembly overall length.

Compatibility & Installation Notes

Confirm the 18-inch insertion against the wall depth and supply layout before ordering. Install horizontally with the flange flush to a vertical wall and the spout downward, following PRIER’s drainage instructions. Keep the shutoff in a heated space, flush the supply before connection and use compatible press fittings and tooling. The self-draining function does not protect an incorrectly installed or obstructed hydrant.

Frequently Asked Questions

What is the inlet connection?

C-434Y18 has a 1/2-inch press-fit inlet. Use compatible fittings and press tooling.

Will it drain with a closed-end hose attached?

Yes. PRIER’s C-434 design drains after shutoff even with a closed-end hose attached, provided it is installed correctly.

What does the listed length mean?

18 inches is the nominal insertion length. Check the wall thickness and supply position to place the shutoff inside a heated area.

Is water draining behind the handle normal?

Brief drainage behind the packing nut after shutoff is part of the C-434 design. Persistent leakage should be inspected.
