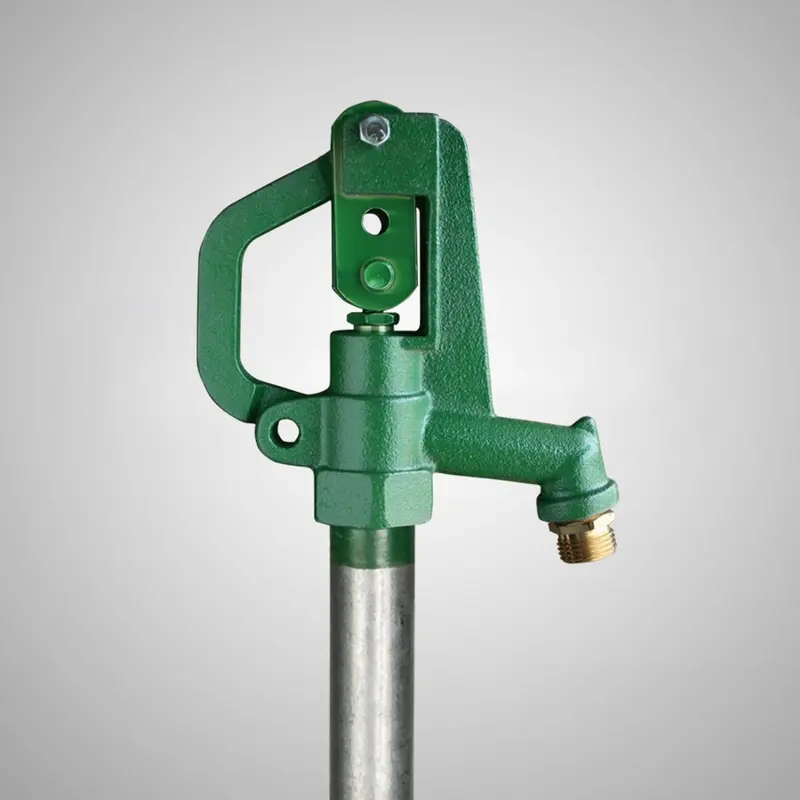

Prier C-240 Economy Freezeless Ground Hydrant
Brand: Prier | Model: C-240 | SKUs: C-240-1, C-240-6
Product Overview
Bring a water connection away from the building with a lever-operated ground hydrant. The Prier C-240 shuts off below grade and drains the standpipe after use when installed correctly. Select the bury depth for the local frost line and drainage conditions; the one-foot and six-foot versions on this page have very different installation requirements.
Key Features
- Variable flow through cam-type lever control.
- 3/4-inch female pipe inlet.
- Brass hose adapter and bucket hook.
- Stainless-steel operating rod.
- Service access from ground level.
Common Uses
Remote outdoor watering points on properties where a buried supply and suitable drainage can be installed.
Technical Specifications
- Series: C-240 economy ground hydrant
- Operation: Lever with variable flow
- Inlet: 3/4-inch FPT
- Outer pipe: Galvanized
- Operating rod: Stainless steel
- Drainage: Automatic standpipe drainage when correctly installed
Dimensions
- C-240-1: 1-foot bury depth; 45-inch overall length
- C-240-6: 6-foot bury depth; 105-inch overall length
- Supply inlet: 3/4 inch FPT
Compatibility & Installation Notes
Locate the valve connection below the local frost line and provide a gravel drainage bed as specified in the manufacturer guide. Flush the line and test flow, shutoff and drainage before backfilling. Keep the hose end open to air so drainage is possible. Bury depth and overall length are different measurements.
Frequently Asked Questions
Does C-240-1 mean a one-foot overall length?
No. It has a one-foot bury depth and a 45-inch overall length.
What is the overall length of C-240-6?
105 inches, with a six-foot bury depth.
Does it need drainage below ground?
Yes. Proper underground drainage is essential to the freezeless function.
Why Buy From Big Frog Supply
Choose the bury depth that places the valve below the frost line, then confirm overall height and drainage before installation.
