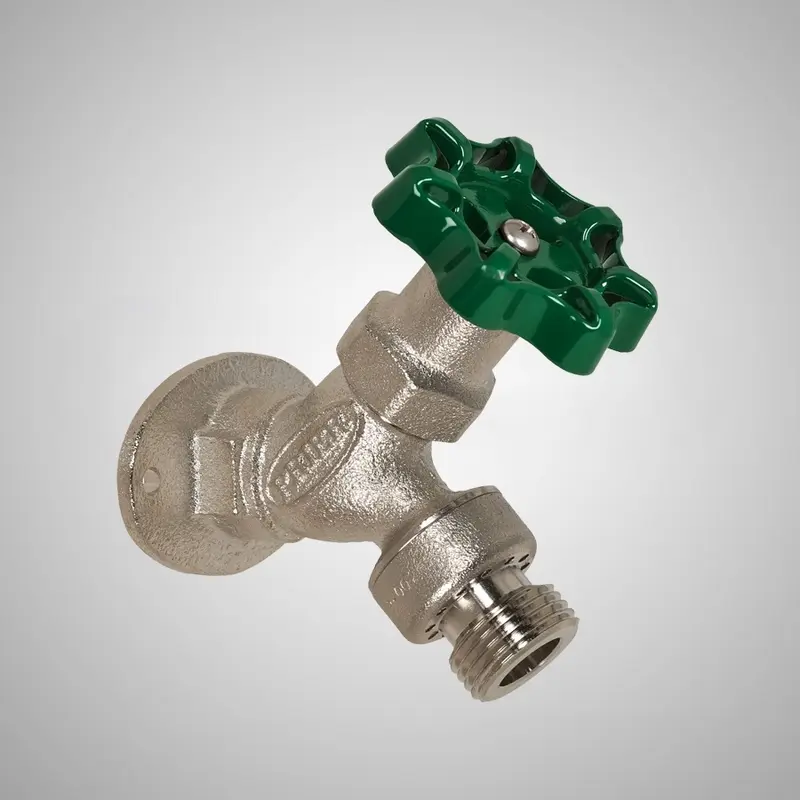

Prier C-157 Satin-Nickel Sweat-Inlet Anti-Siphon Angle Sill Faucet

Prier C-157 Satin-Nickel Sweat-Inlet Anti-Siphon Angle Sill Faucet

Brand: Prier | Model: C-157 | SKUs: C-157NP.50, C-157NP.50-SGH

Product Overview

Connect a protected hose faucet to a copper supply in a non-freezing location. The Prier C-157NP.50 uses a sweat inlet and satin-nickel finish, with a standard or SGH soft-grip handle option. Match the copper size and joining arrangement before selecting it for a basement, garage or mild-climate exterior connection.

Key Features

• Cast-brass body and mounting flange.
• Satin-nickel finish.
• Vacuum breaker and backflow check.
• Standard and soft-grip handle options.

Common Uses

Non-freezing copper-pipe hose connections requiring anti-siphon protection.

Technical Specifications

• C-157NP.50: Sweat inlet, satin nickel, standard handle
• C-157NP.50-SGH: Sweat inlet, satin nickel, soft-grip handle
• Inlet: 1/2-inch sweat; 3/4-inch sweat use requires Type M copper
• Outlet: 3/4-inch garden hose thread
• Protection: P-002 vacuum breaker/backflow check, ASSE 1011
• Body: Cast brass

Dimensions

• Inlet: 1/2 inch SWT
• Secondary 3/4-inch sweat compatibility: Type M copper only
• Hose outlet: 3/4 inch garden hose thread

Compatibility & Installation Notes

Confirm the copper connection before soldering. The manufacturer’s three-quarter-inch sweat option applies only to Type M copper. Orient the handle up and hose outlet down; keep the valve open when applying soldering heat. Flush the supply and test for leaks. Select a freezeless hydrant for freezing exposure.

Frequently Asked Questions

Is the C-157 inlet female threaded?
No. C-157 uses a sweat connection.

Can it be used with 3/4-inch copper?
Prier limits the 3/4-inch sweat connection to Type M copper.

Is it freezeless?
No. Install it in a non-freezing location.

Why Buy From Big Frog Supply

Match the sweat connection and handle option to the copper supply for a practical protected hose outlet.
