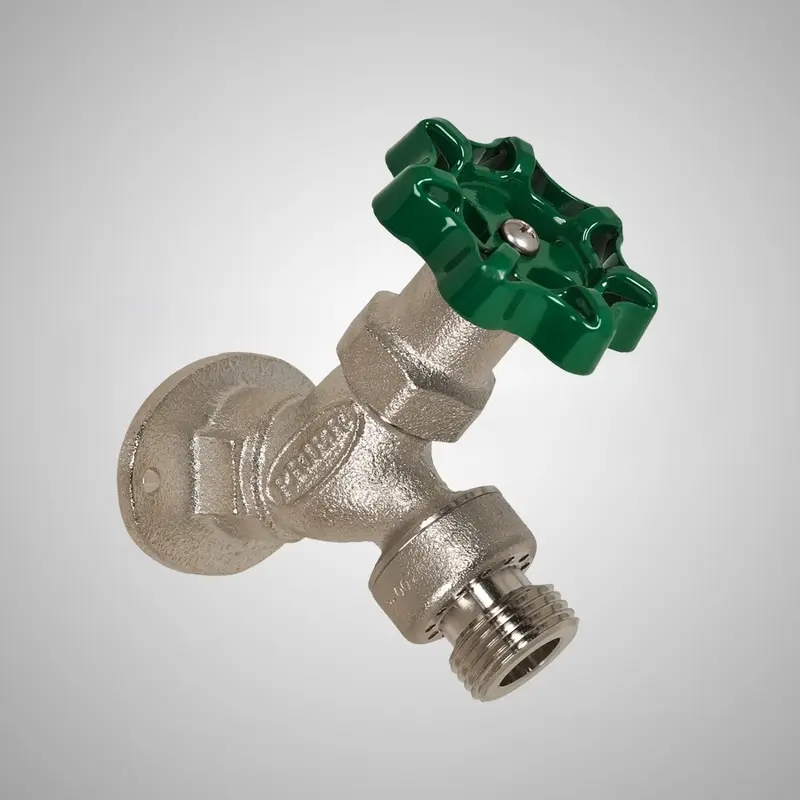

Prier C-155 Anti-Siphon Angle Sill Faucet

Prier C-155 Anti-Siphon Angle Sill Faucet

Brand: Prier | Model: C-155 | SKUs: C-155CP.50, C-155CP.75, C-155NP.SW, C-155NP.SW-SGH

Product Overview

Add a protected hose connection in a location that stays above freezing. The Prier C-155 offers chrome threaded-inlet choices and satin-nickel sweat-inlet choices on this page. Compare the connection and finish together so the faucet suits the supply line as well as the surrounding fixtures.

Key Features

• Heavy-pattern cast-brass body and mounting flange.
• Vacuum breaker with backflow check.
• Handle operation.
• 3/4-inch garden-hose outlet.

Common Uses

Indoor hose connections and mild-climate outdoor watering points.

Technical Specifications

• C-155CP.50: Polished chrome, 1/2-inch FPT inlet
• C-155CP.75: Polished chrome, 3/4-inch FPT inlet
• C-155NP.SW: Satin nickel, 3/4-inch SWT inlet
• C-155NP.SW-SGH: Satin nickel, 3/4-inch SWT inlet, soft-grip handle
• Body: Cast brass
• Protection: P-002 vacuum breaker/backflow check, ASSE 1011
• Outlet: 3/4-inch garden hose thread

Dimensions

• Threaded inlet options: 1/2 inch or 3/4 inch FPT
• Sweat inlet option: 3/4 inch SWT
• Hose outlet: 3/4 inch garden hose thread

Compatibility & Installation Notes

Choose the inlet for the actual supply pipe. Position the handle up and hose threads down. Flush debris from the supply before connecting, and keep the stem fully open when soldering. Secure the flange and test for leaks. The C-155 is for non-freezing locations; anti-siphon protection does not make it freezeless.

Frequently Asked Questions

Are all C-155 options threaded?
No. CP.50 and CP.75 are threaded; NP.SW options have a 3/4-inch sweat inlet.

What does SGH identify?
The soft-grip handle option.

Is it a freezeless wall hydrant?
No. Install it only where freezing will not occur.
