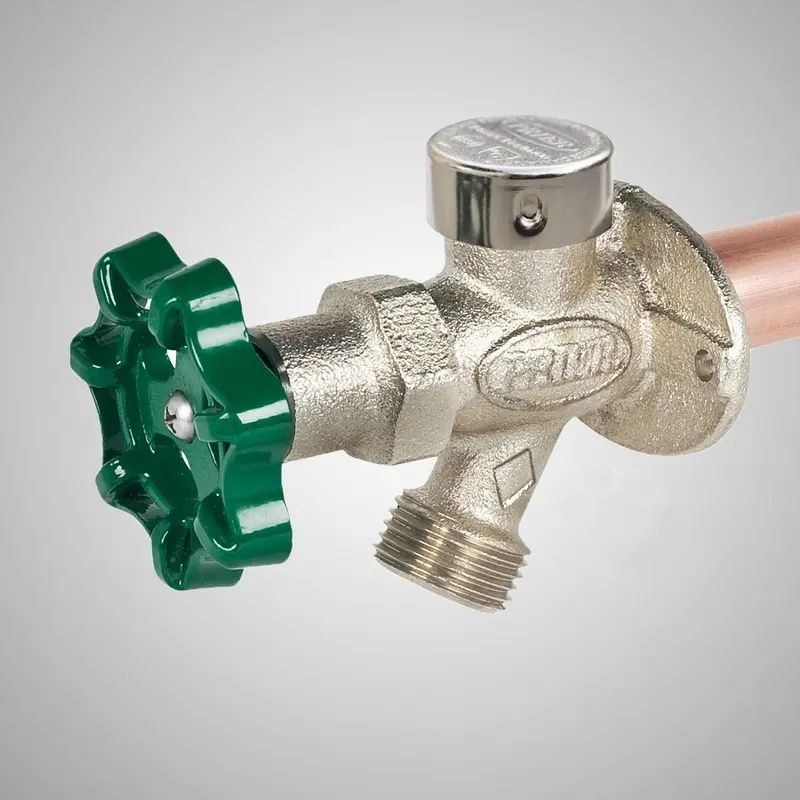

Prier C-144X Anti-Siphon Freezeless Wall Hydrant – 1/2-inch crimp PEX
Brand: Prier | Model: C-144X | SKUs: C-144X06, C-144X06-SGH, C-144X08, C-144X08-SGH, C-144X12, C-144X12-SGH, C-144X16, C-144X16-SGH
Product Overview
Provide a residential outdoor hose connection with the shutoff inside heated space. Connect a half-inch crimp PEX supply using the X-style inlet. Choose from the insertion lengths listed on this page, then select the standard or soft-grip handle to suit everyday outdoor use. Check the wall depth and the indoor supply position before ordering; the insertion length must place the valve where it stays above freezing.
Key Features
- Anti-siphon vacuum breaker and backflow check.
- Brass body with satin-nickel finish.
- Mounting flange with drainage pitch.
- Standard and SGH soft-grip handle options.
Common Uses
Residential outdoor watering and compatible wall-hydrant replacements.
Technical Specifications
- Series: C-144
- Inlet: 1/2-inch crimp PEX
- Body: Brass
- Finish: Satin nickel
- Operation: Full-turn handle
- SGH suffix: Soft-grip handle
- Protection: Vacuum breaker and backflow check
Dimensions
- Insertion options on this page: 6 inches, 8 inches, 12 inches, 16 inches
- Inlet: 1/2-inch crimp PEX
- Installation bore: 1 inch
Compatibility & Installation Notes
Keep the shutoff within heated space and install with downward drainage pitch. Remove attached hoses during freezing weather. Check for leakage before finishing the wall. Insertion length is different from overall assembly length; follow the manufacturer’s installation guide for the selected inlet.
Frequently Asked Questions
What inlet does this model use?
It uses a 1/2-inch crimp PEX connection.
What does SGH mean?
It identifies the soft-grip handle option.
Can a hose stay attached during freezing weather?
No. Remove the hose so the hydrant can drain.
Why Buy From Big Frog Supply
Match the 1/2-inch crimp PEX connection and listed insertion lengths to the wall and supply line before ordering.
