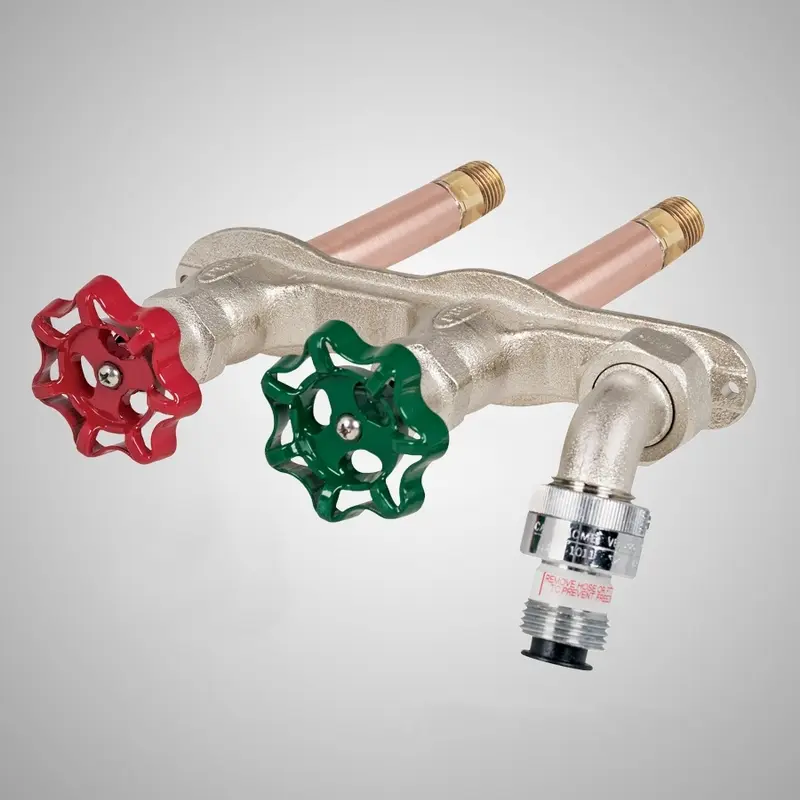

Prier C-108W Hot and Cold Mixing Hydrant – 1/2-Inch Wirsbo PEX

Prier C-108W Hot and Cold Mixing Hydrant – 1/2-Inch Wirsbo PEX

Brand: Prier | Model: C-108W | SKUs: C-108W06, C-108W08, C-108W10, C-108W12, C-108W14, C-108W16, C-108W18, C-108W20, C-108W22, C-108W24

Product Overview

Bring both hot and cold water to an outdoor hose connection for cleanup tasks. Use W style for a half-inch Wirsbo expansion PEX supply connection. It is a different inlet choice from crimp PEX and threaded pipe, so match it to the joining method used on both supply lines. The C-108 allows horizontal or vertical mounting, giving the installation flexibility when routing the two supplies.

Key Features

• Hot and cold mixing at the hose connection.
• Anti-siphon vacuum breaker and backflow check.
• Brass construction with satin-nickel finish.
• Internal checks help limit thermal migration.

Common Uses

Outdoor washdown and cleanup where both water temperatures are useful. Select the connection style and reach before planning the supply runs.

Technical Specifications

• Series: C-108
• Inlet style: W
• Supply inlet: 1/2-inch Wirsbo expansion PEX
• Body: Brass
• Finish: Satin nickel
• Function: Hot and cold mixing, anti-siphon protection
• Mounting: Horizontal or vertical

Dimensions

• Insertion lengths on this page: 6 inches, 8 inches, 10 inches, 12 inches, 14 inches, 16 inches, 18 inches, 20 inches, 22 inches, 24 inches
• Supply center spacing: 3-1/2 inches
• Bore size for each supply: 1 inch

Compatibility & Installation Notes

Both shutoffs must reach heated space. Pitch the barrels toward the outlet for drainage and disconnect hoses in freezing weather. Keep soldered valves open during installation. Follow the manufacturer guide for fastening, leakage checks and operation; avoid more than twelve continuous hours of use.

Frequently Asked Questions

Does W style have a threaded pipe inlet?
No. W identifies a 1/2-inch Wirsbo expansion PEX inlet.

How do I choose the length?
Match the insertion to the wall depth and the heated supply location.

Can the hose stay attached in freezing weather?
No. Disconnect it so the hydrant can drain.

Why Buy From Big Frog Supply

Compare the 1/2-inch Wirsbo expansion PEX connection and listed insertion lengths with the installation plan to choose the right hot-and-cold watering point.
