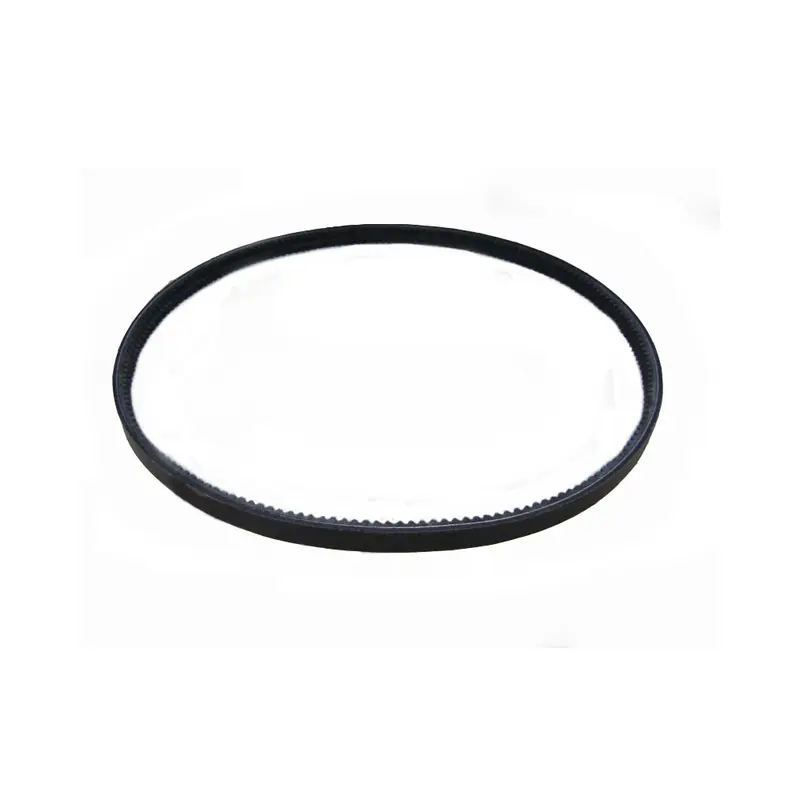

Polyester Cord Cogged Wedge 2-Banded Drive Belt (3/8″ X 50″) 3VX500/02 711728015

One New Aftermarket Replacement Cogged Wedge 2-Banded Drive Belt for Onan Lawn and Garden Equipment

This 3VX-section banded cogged wedge drive belt is a direct aftermarket replacement for Onan (Cummins Onan) lawn and garden engines and generator sets, including the L600, L700, LS70, and LS75 models. The 2-band banded design links multiple belt ribs into a single unit, eliminating belt whip and vibration common in multi-belt installations, while the cogged underside provides flexibility for smaller-diameter pulleys without sacrificing load capacity.

Specifications

• Belt Section: 3VX (Narrow Wedge Cogged)
• Number of Bands: 2
• Top Width: 3/8 in (0.81 in combined banded width)
• Outside Circumference (OC) Length: 50 in
• Inside Length: 48 in
• Height: 21/64 in
• Pitch Distance: 13/32 in
• Material: Polyester cord reinforcement
• Color: Black

Compatible Models

Onan / Cummins Onan: L600, L700, LS70, LS75 (lawn and garden equipment with Onan gas engine, including Prime Mover, Rounder, and Skid Steer applications)

Replaces Part Number(s):

3VX500/02, 711728015

Aftermarket Interchange Numbers

ENB40-0148; also sold as: 3VX500/2, 2/3VX500, 2-3VX500, 3VX500-2, 3VX500-02, A-3VX500/02, 2R3VX500, R3VX500, BTQ-2/3VX500, 2H3VX500, 3VX500H2

New aftermarket replacement part – not remanufactured, not used.
