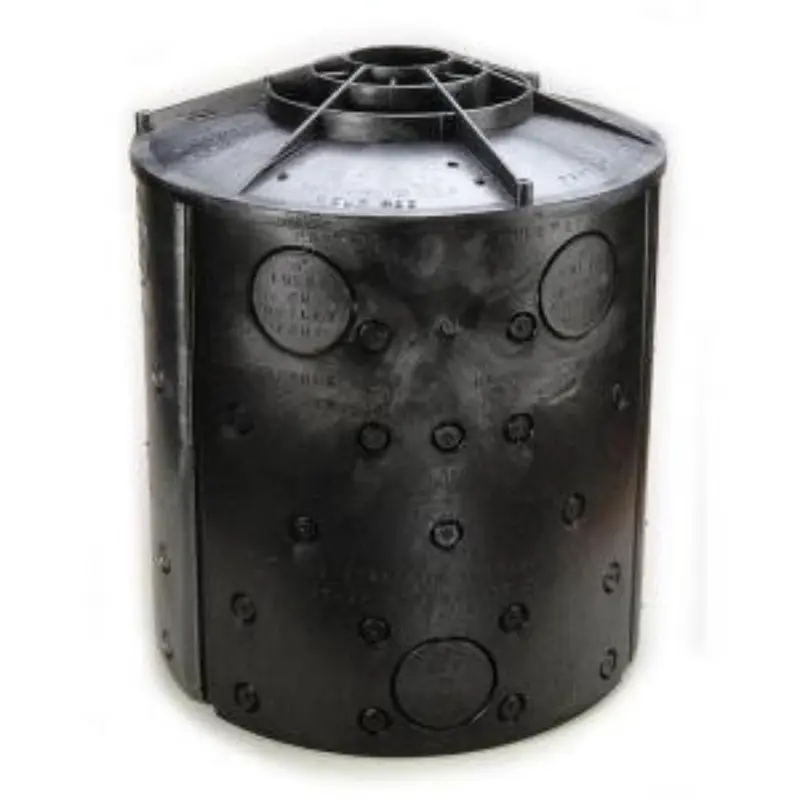

NDS FWAS24WH Flo-Well 24 in. Stormwater Dry Well System – 49 Gallon
Brand: NDS | SKU: FWAS24WH
Product Overview
The NDS Flo-Well FWAS24WH is a modular underground dry-well system designed to collect stormwater and allow it to infiltrate into surrounding soil on site. It provides a gravel-free alternative to a traditional stone-filled dry well and can be used alone or combined with additional Flo-Well units when a project needs greater storage volume. It is useful for managing runoff from downspouts, surface drains and other drainage sources where site conditions support subsurface infiltration.
Key Features
- Approximately 49-gallon storage capacity
- Modular units can be connected or stacked
- 18 knockout leaching ports
- Three inlet/outlet knockout locations
- Manufactured from 100% recycled plastic
Technical Specifications
- Color: Black
- Capacity: 49 gallons
- Leaching-port knockouts: 18
- Inlet/outlet knockouts: 3
- Inlet/outlet knockout diameter: 4.5 in.
- Leaching knockout diameter: 1.5 in.
Compatibility & Installation Notes
Dry-well performance depends on soil permeability, groundwater conditions, required setbacks and local drainage rules. Size and locate the system for the actual runoff volume and site conditions.
Frequently Asked Questions
How much water does one Flo-Well hold?
The FWAS24WH is listed at approximately 49 gallons.
Can multiple units be used together?
Yes. Flo-Well units can be connected or stacked to increase system storage.
Does a dry well work in every soil?
No. Infiltration depends on soil and site conditions, so drainage design and local requirements should be checked before installation.
Why Buy From Big Frog Supply?
FWAS24WH provides a modular approach to underground runoff management with clearly defined storage and expansion options.
