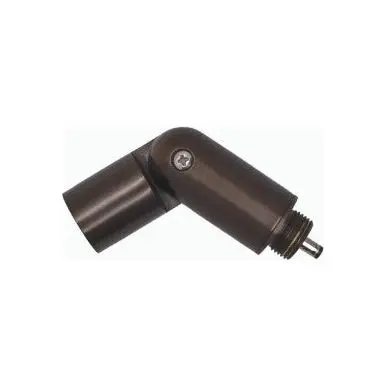

Lumien N8B3-3W-30K-30-A Brass Nano Knuckle Module

Lumien N8B3-3W-30K-30-A Brass Nano Knuckle Module

Brand: Lumien | SKU: N8B3-3W-30K-30-A

Product Overview

Lumien N8B3-3W-30K-30-A Brass Nano Knuckle Module supplies the light in a compatible Lumien Nano modular assembly. Choose the engine separately from the housing when you are building a light for a specific landscape feature or replacing a matching module in an existing setup. The knuckle form provides a different physical arrangement from a straight module. Choose it with the supported housing and mounting layout, while matching the light option to the effect you want.

RGB color and 3000K white give you a choice between a colored accent and warm white light. Use the supported LumienPRO system with LP-REMOTE to select the effect. The selected 30° beam provides a concentrated accent for a smaller target. Consider the distance to the feature when deciding how much of it you want to illuminate.

Key Features

• Nano light engine for a supported modular assembly
• RGB color plus 3000K white with compatible PRO controls
• 30° selected beam

Common Uses

Building or servicing a supported Lumien Nano modular-light assembly.

Technical Specifications

• Selected module: N8B3-3W-30K-30-A
• Input power: 3W
• Light option: RGB plus 3000K
• Beam spread: 30°
• Delivered output: White/color-channel values: 30K: 104; R: 37, G: 109, B: 36 lumens
• Control: LumienPRO with LP-REMOTE
• Volt amperes: 4.9 VA
• Operating voltage: 10–15V
• Material: Brass

Manufacturer-listed included components: QC 6′ Wire Lead, QC Lock Screw, 3mm Allen Key

Dimensions

Illustrated head/knuckle length: 2.56 in.; head diameter/cross-section callout: 1.09 in.; knuckle/body-height callout: 2.28 in.; length including lower connector: 3.66 in. Wire excluded.

Compatibility & Installation Notes

Match the exact module and housing pairing, available clearance and supported power and control arrangement.

Frequently Asked Questions

Is the module a complete installed light?

The module supplies the light. Complete the installation with the supported housing, mounting parts and power connection.

What should I match when replacing a module?

Match the original module size, housing compatibility, light option and supported controls.

Can I use white light as well as color?

Yes. The selected option supports RGB color and 3000K white with compatible LumienPRO controls.
