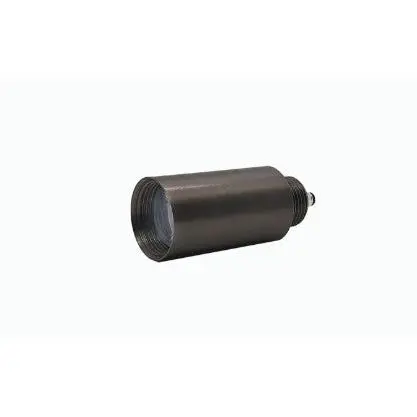

Lumien N8B1-2.5W-27K-30-A Brass Nano Module

Lumien N8B1-2.5W-27K-30-A Brass Nano Module

Brand: Lumien | SKU: N8B1-2.5W-27K-30-A

Product Overview

Lumien N8B1-2.5W-27K-30-A Brass Nano Module supplies the light in a compatible Lumien Nano modular assembly. Choose the engine separately from the housing when you are building a light for a specific landscape feature or replacing a matching module in an existing setup. The Nano size is the first part of the fit. Match it to the supported housing, then choose the beam around the width of the feature and the distance to it. The module is the light engine, so the housing and mounting parts are still part of planning the complete light.

RGB color and 2700K white give you a choice between a colored accent and warm white light. Use the supported LumienPRO system with LP-REMOTE to select the effect. The selected 30° beam provides a concentrated accent for a smaller target. Consider the distance to the feature when deciding how much of it you want to illuminate.

Key Features

• Nano light engine for a supported modular assembly
• RGB color plus 2700K white with compatible PRO controls
• 30° selected beam

Common Uses

Building or servicing a supported Lumien Nano modular-light assembly.

Technical Specifications

• Selected module: N8B1-2.5W-27K-30-A
• Input power: 2.5W
• Light option: RGB plus 2700K
• Beam spread: 30°
• Delivered output: White/color-channel values: 27K: 90; R: 28, G: 104, B: 33 lumens
• Control: LumienPRO with LP-REMOTE
• Volt amperes: 3.8 VA
• Operating voltage: 10–15V
• Material: Brass

Manufacturer-listed included components: QC 6′ Wire Lead, Rubber Sleeve for Coredrill Applications, QC Lock Screw

Dimensions

Module diameter: 1.09 in.; body-height callout: 1.94 in.; length including lower connector: 3.32 in. Wire excluded.

Compatibility & Installation Notes

Lumien lists compatibility with Brass Quick Connect Series.

Match the exact module and housing pairing, available clearance and supported power and control arrangement.

Frequently Asked Questions

Is the module a complete installed light?

The module supplies the light. Complete the installation with the supported housing, mounting parts and power connection.

What should I match when replacing a module?

Match the original module size, housing compatibility, light option and supported controls.

Can I use white light as well as color?

Yes. The selected option supports RGB color and 2700K white with compatible LumienPRO controls.
