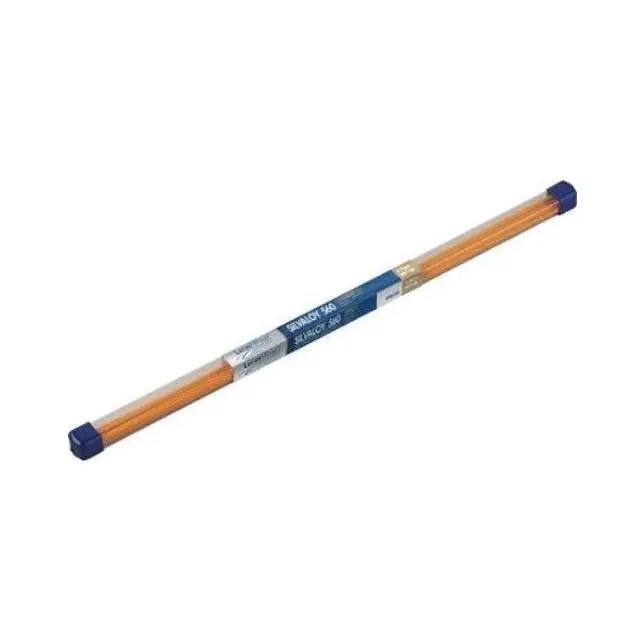

Lucas Milhaupt Silvaloy 560 Orange Flux-Coated Brazing Rods, Part 98120

Lucas Milhaupt Silvaloy 560 Orange Flux-Coated Brazing Rods, Part 98120

Brand: Lucas Milhaupt | SKU: LM98120 | Manufacturer Part: 98120

Product Overview

Part 98120 provides cadmium-free Silvaloy 560 as factory flux-coated rods. The coated format combines filler metal and flux for hand-fed brazing, reducing a separate flux application step. Select the alloy and joint preparation for the metals and service conditions involved.

Key Features

• 56% silver, 22% copper, 17% zinc, 5% tin
• 0.062 in. alloy core x 18 in. rod; eight rods per plastic tube; finished flux-coated diameter 0.125 in.
• AWS BAg-7 classification

Common Uses

Compatible refrigeration tubing and ferrous or non-ferrous metal joints.

Technical Specifications

• Nominal composition: 56% silver, 22% copper, 17% zinc, 5% tin
• Temperature data: 1145°F solidus; 1205°F liquidus; 1205–1400°F brazing range
• Classification: AWS BAg-7

Dimensions

0.062 in. alloy core x 18 in. rod; eight rods per plastic tube; finished flux-coated diameter 0.125 in..

Compatibility & Installation Notes

Confirm base-metal compatibility, joint clearance, and flux behavior; follow the flux-coated rod TDS and SDS.

FAQs

Is flux already on the rod? Yes. The manufacturer specifies an integral flux coating on the Silvaloy 560 alloy core.
