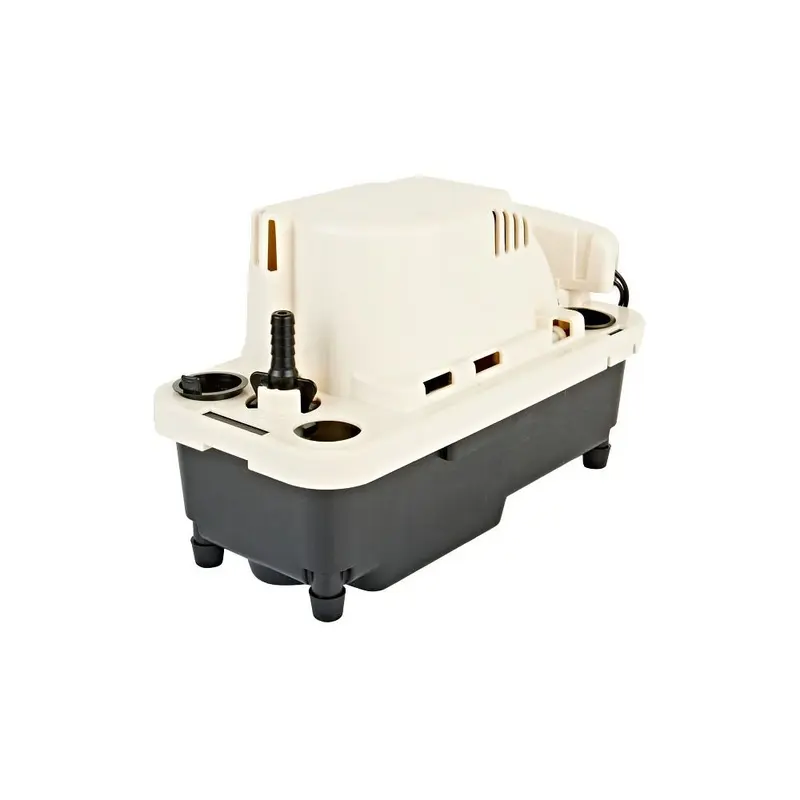

Little Giant VCMA-20ULS-PRO-230 Condensate Pump, 1/30 HP, 230 V, Safety Switch

Little Giant VCMA-20ULS-PRO-230 Condensate Pump, 1/30 HP, 230 V, Safety Switch

Brand: Little Giant | SKU: VCMA-20ULS-PRO-230 | Item: 554631

Product Overview

The VCMA-20ULS-PRO-230 automatically collects and moves HVAC condensate when a gravity drain is unavailable. It can serve air conditioning, refrigeration, dehumidification, and compatible condensing equipment. This 230 V model delivers 78 gallons per hour at 1 ft of lift and has a 20 ft shutoff head. Check the actual rise and tubing run before choosing a pump.

The PRO housing has a slim footprint, an external test/run lever, and a quick release discharge adapter for easier service. An overflow safety switch is included for connection to the equipment shutoff circuit or a separately selected alarm arrangement. Discharge tubing is not included with this item.

Key Features

• 1/30 HP automatic condensate pump for 230 V power.
• 3/8 in. barbed discharge with check valve.
• 6 ft grounded power cord.
• Slim PRO design with external test/run lever.
• Overflow detection switch included.

Common Uses

Condensate removal from HVAC equipment where the drain cannot flow by gravity.

Technical Specifications

• Manufacturer item: 554631
• Motor: 1/30 HP, 230 V, 0.7/0.6 A at 50/60 Hz
• Flow at 1 ft: 78 GPH
• Shutoff head: 20 ft
• Discharge: 3/8 in. barbed
• Safety switch: yes; tubing: not included

Dimensions

Approximately 10.2 in. long x 4.8 in. wide x 6.5 in. high.

Compatibility & Installation Notes

Confirm the power supply, condensate volume, vertical lift, and discharge tubing fit. Follow Little Giant’s instructions for overflow switch wiring where equipped and maintain access for routine tank cleaning.

FAQs

Is tubing included with VCMA-20ULS-PRO-230? No, discharge tubing is selected separately.

Does it include an overflow safety switch? Yes. Connect it according to the equipment and pump instructions.
