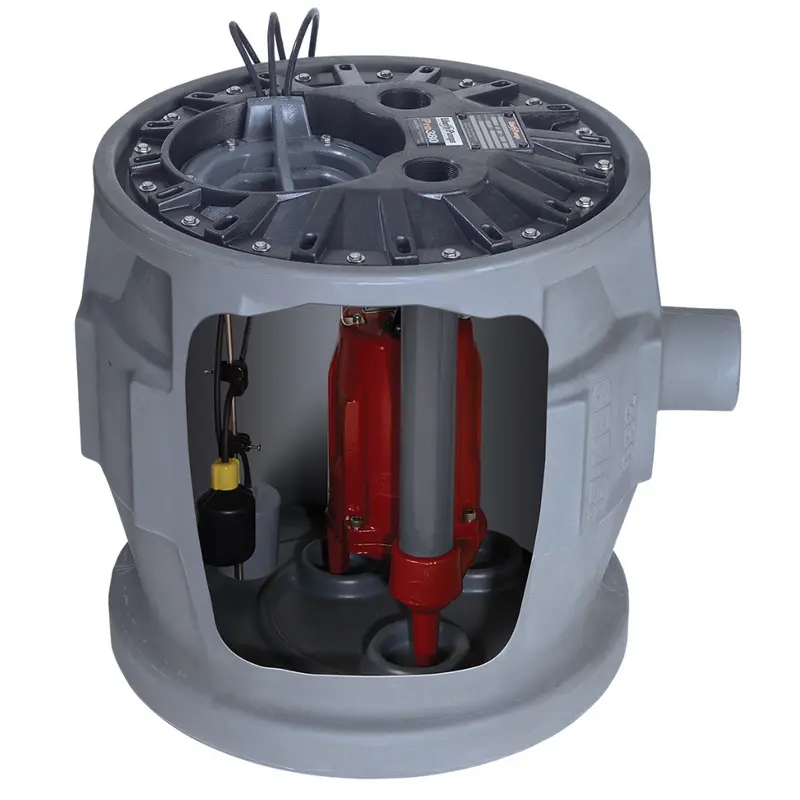

Liberty Pumps P382XPRG101 ProVore 380 Grinder Pump System, 1 HP
Brand: Liberty Pumps | SKU: P382XPRG101
Product Overview
The P382XPRG101 is a factory assembled 1 HP ProVore 380 grinder package with a 41 gallon, 24 in. deep basin. Its V-Slice cutter handles difficult sewage solids, while the QuickTree float assembly can be inspected under a separate cover without pulling the pump. The X-series basin uses a 16 bolt cover and is designed for a 10 ft stack test.
The package operates on 115 V single phase power and has a 2 in. discharge. This base version is listed without the optional high water alarm. Confirm the pump’s head requirement and system connections before installation.
Key Features
- 1 HP grinder pump with V-Slice cutter.
- 41 gallon, shallow basin with separate QuickTree access.
- Sealed X-series cover with 16 stainless steel bolts.
Common Uses
Residential sewage grinder installations where a packaged shallow basin and 2 in. discharge fit the plan.
Technical Specifications
- 1 HP, 115 V, single phase
- Discharge: 2 in.
- Standard pump cord: 10 ft
- Base system weight: 87 lb
- Alarm: not included
Dimensions
Nominal basin: 24 in. diameter x 24 in. deep; 41 gallon capacity.
Compatibility & Installation Notes
Size the grinder pump to actual flow and head. Follow Liberty Pumps’ instructions for piping, venting, electrical supply, and alarm connections where equipped.
FAQs
Can the float be inspected without removing the pump? Yes. The QuickTree assembly has separate access.
Is an alarm included? No, an alarm is an optional package configuration.
Why Buy from Big Frog Supply
Select P382XPRG101 for the 115 V ProVore grinder package without an alarm.
